2-Bay Power Plus Media Server

Hybrid cloud media center for home

Consolidate your clouds in ZyXEL’s Media Servers. The ZyXEL Media Servers work with a wide variety of public cloud services including Dropbox, Google Drive™**, Memopal and more! Alternatively, you can create your own private cloud with ownCloud or Polkast for a secured private cloud data. Backup, playback and download files freely anywhere you go with ZyXEL’s Media Servers.

* Apple and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. AirPlay is a trademark of Apple Inc.

** (C) 2014 Google Inc. All rights reserved. Chromecast™ is a trademark of Google Inc.

Cloud Media Server with Superior HD Multimedia Performance Wherever You Go!

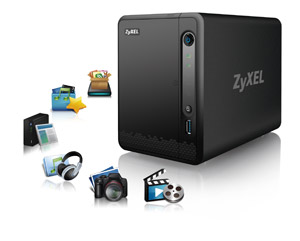

The ZyXEL NSA325 v2 2-Bay Power Plus Media Server provides a convenient operating center for you to manage and store music, videos, photos and documents in your personal cloud. The NSA325 v2 offers fast simultaneous multimedia streaming and sharing functions for multiple UPnP- and DLNA-certified devices in every room at home.

		Superior performance Powered by a 1.6 GHz CPU and 512 MB memory, the ZyXEL NSA325 v2 2-Bay Power Plus Media Server works as your personal cloud so you can quickly and easily stream media to multiple UPnP- and DLNA-certified devices such as Microsoft Xbox, Sony PlayStation or DLNA TV in every room in your home.

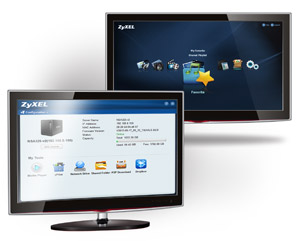

		Intuitive user-interface Through NSA325 v2’s intuitive user interface, you can quickly preview files through thumbnails and play photo slideshows directly from your Web browser. The NSA325 v2 also allows you to create a music playlist and play it in the background for your slide shows.

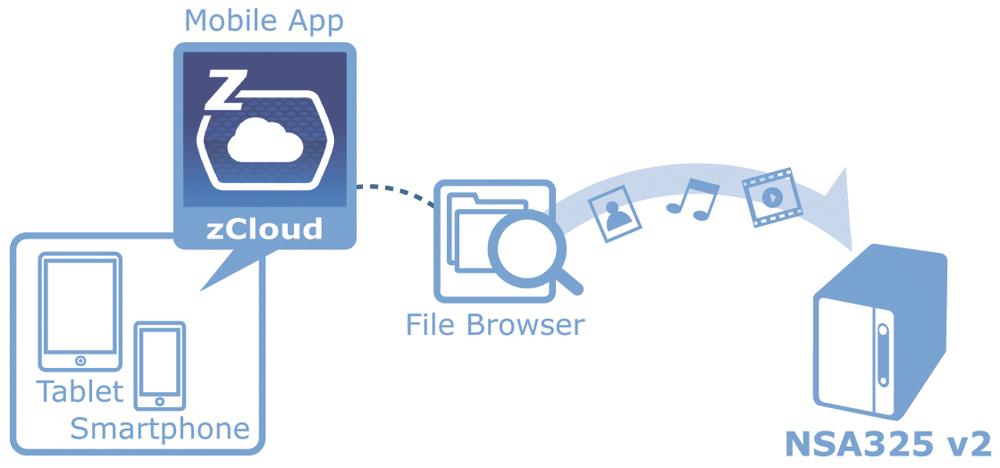

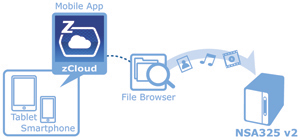

		zCloud ZyXEL’s zCloud app enables access, view and uploads of your media contents directly from your mobile device wherever you go. It’s like having the ZyXEL Media Servers data at your fingertips any moment.

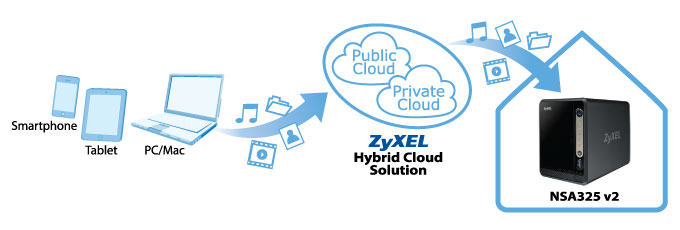

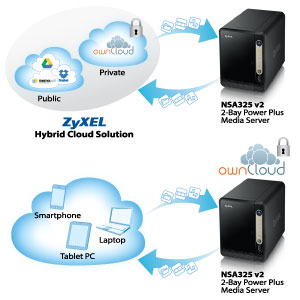

		Hybrid Cloud Cloud services such as Google Drive™**, Dropbox, Memopal and others make your life easier, but wouldn’t it be better if all those can be consolidated into one service. With ZyXEL’s Media Server you can. The OwnCloud feature allows you to centralize all your cloud data in ZyXEL’s Media Servers and offers fast local access to all your networked devices at home. You can enjoy the flexibility to make your data public or private, share your data to the public and rest assured that your private local cloud data is extremely safe.
Enlarge

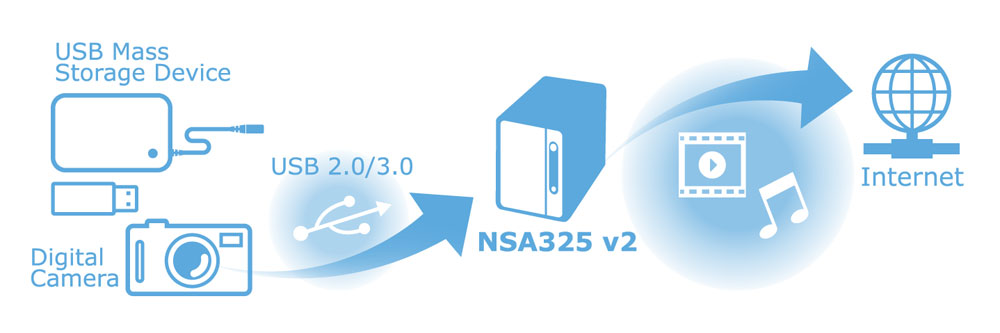

		Faster file sharing and storing The embedded USB 3.0 port and copy/sync button allow the ZyXEL NSA325 v2 to have faster data backup and synchronization operations to and from USB mass storage devices or digital cameras. In addition to serving as a P2P download/FTP server, the NSA325 v2 allows you to easily share, upload and copy stored files from RapidShare via mobile devices. With Dropbox support, you can remotely backup files and send torrents from your mobile devices to your NS325 v2 from virtually anywhere.

Hybrid Cloud Cloud services such as Google Drive™**, Dropbox, Memopal and others make your life easier, but wouldn’t it be better if all those can be consolidated into one service? With ZyXEL’s Media Server you can. The OwnCloud feature allows you to centralize all your cloud data in ZyXEL’s Media Servers and offers fast local access to all your networked devices at home. You can enjoy the flexibility to make your data public or private, share your data to the public and rest assured that your private local cloud data is extremely safe.

System Specifications

Networking

• Network protocol:
  • CIFS/SMB, NFS (for Linux/Unix)
  • FTP, HTTP
  • DHCP client
  • PPPoE
  • Network Time Protocol (NTP)
• Network application:
  • Personal cloud with ownCloud and Polkast support
  • Media server:
            - DLNA 1.5 media server
            - UPnP AV server
            - iTunes server
            - SqueezeCenter support
            - Photo album server

  • Web server:
            - FTP server
            - phpMyAdmin/MySQL/PHP
            - RSS client & server

  • Smartphone application:
    • zCloud, zMedia, ownCloud, Dropbox, Polkast, Twonky Beam
  • Network application management:
    • User & group management
    • Package Management for setting up applications
    • One-click-hosting sites download manager
  • Network security:
    • Support HTTPS and FTPES (FTP over explicit TLS/SSL)
    • Encrypted NSA to NSA remote replication
    • Encrypted NSA to external disk archive backup

Data Management

• Backup support:
  • One-touch copy/sync button for external USB-capable devices backup
  • Backup planner:
  - Instant/Scheduled backup
  - NSA to NSA synchronization/archive backup
  - NSA to external USB hard disk backup

  • Google Drive™** and dropbox support
  • Apple Time Machine support
• Download/Upload support:
  • Auto-download from FTP/HTTP/P2P download service
  • Scheduled download
  • One-click hosting sites downloading
  • Auto-upload photos and videos to YouTube/Flickr/FTP server
• File system support:
  • Internal HDD: EXT4
  • External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, ReiserFS, XFS

System Management

• RAID 0, 1, JBOD
• Online firmware upgrade
• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)

Power and Thermal Management

• Power control:
  • Internal disk hibernation support
  • Scheduled power on/off/reboot
  • Wake-on-LAN support
  • System automatically resume after power outage
  • APC USB UPS monitoring and auto shutdown
• Thermal management:
  • Smart fan speed control
  • High temperature alert/buzzer
  • Auto shutdown while high temperature
  • Special Feature:
  - Hybrid cloud support for remote backup and download, intuitive user interface


Application Package Center

• Backup Planner
• Gallery
• NZBGet
• PHP-MySQL
• Polkast
• SqueezeCenter
• Transmission
• WrodPress

Minimum System Requirements

• OS for utility: Windows XP/Vista/7 (32 & 64 bit)/8  (32 & 64 bit)
• Browser: IE 7.0+, Firefox 20+, Google Chrome 10+, Safari 5+

Hardware Specifications

• 2.5" or 3.5" SATA I/II hard disk interface supported up to 12 Terabytes
• One Gigabit Ethernet RJ-45 connector
• Two USB 2.0 ports
• One USB 3.0 port
• Buttons:
  • Power button
  • Copy/Sync button
  • Reset button
• Smart fan design
• Power consumption:
  • Access mode: 27 watt
  • Hard disk spin-down mode: 7 watt
• Power:
  • Input: 100 - 240 V AC, 50/60 Hz
  • Output: 12 V DC, 5 A

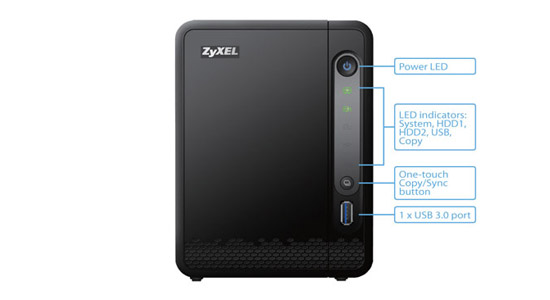

• Front Panel:

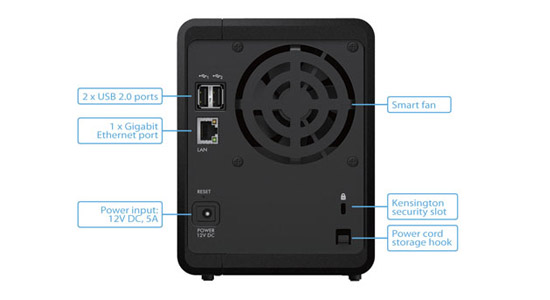

• Rear Panel:

Physical Specifications

• Item dimensions (WxDxH): 207 x 164 x 123 mm (8.15" x 6.46" x 4.84")
• Item weight: 1,257 g (2.77 lb.)
• Packing dimensions (WxDxH): 280 x 173 x 275 mm (11.02" x 6.81" x 10.82")
• Packing weight: 2,260 g (4.99 lb.)

Environmental Specifications

• Operating Environment
  • Temperature: 0ºC to 40ºC (32ºF to 104ºF)
  • Humidity: 10% to 95% (Non-condensing)
• Storage environment
  • Temperature: -30ºC to 70ºC (-22ºF to 158ºF)
  • Humidity: 10% to 95% (Non-condensing)

Certification

• Safety: CE LVD, BSMI
• EMC: CE, FCC class B, C-Tick, BSMI
• Others: DLNA 1.5, UPnP

Package Contents

• Network storage device
• Power adapter
• Ethernet cable
• Quick start guide
• Support CD
• Warranty card
