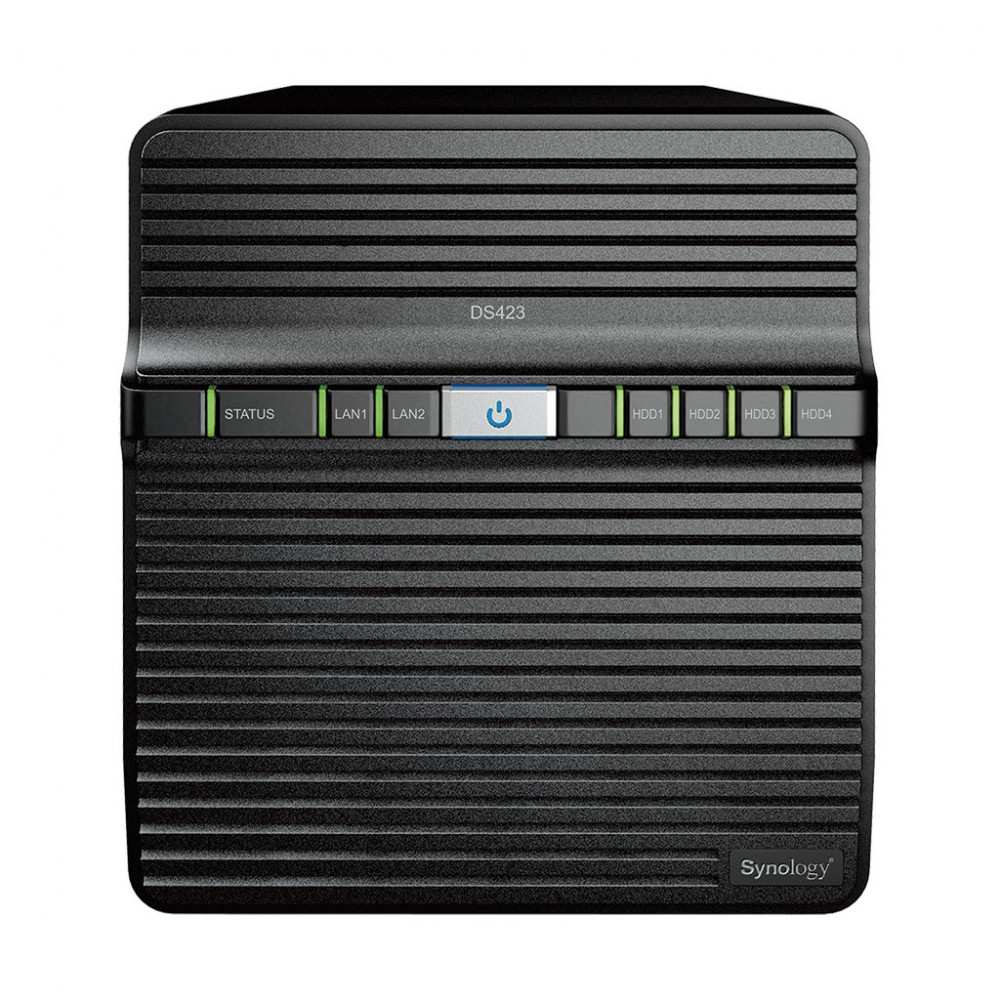

Value Series : DiskStation DS423
Data management platform for home and small office
CPU: Realtek RTD1619B 4-core 1.7 GHz
RAM: 2 GB DDR4 non-ECC
Gigabit LAN Port x2
USB 3.2 Gen 1 Port x3
2 Years Warranty
----- Reference -----
Synology DS423, 4 Bays NAS, Data management platform for home and small office, CPU: Realtek RTD1619B 4-core 1.7 GHz, RAM: 2 GB DDR4 non-ECC, Gigabit LAN Port x2, USB 3.2 Gen 1 Port x3, 2 Years Warranty
| สอบถามรายละเอียดและข้อมูลเพิ่มเติม |
|
Versatile data management platform for work and more
Flexibly store up to 72 TB of data1 with 100% ownership and enjoy multi-platform access from anywhere.
Safely share files and media over your private cloud for easier collaboration and better productivity.
Leverage intuitive surveillance tools to protect your premises and store footage from up to 30 IP cameras.2
Import and sync data scattered across PCs, Macs, phones, and external storage devices to implement well-organized file management for your business. Learn more
Browse, access, edit, and share files securely and conveniently via desktop, mobile, or web browser platforms. Use intuitive admin tools to track and set file permissions and control access to documents, files, and other data.
Save space on your personal devices by only synchronizing the files you need from your Synology system. Pin frequently accessed files for convenient offline accessibility.
Sync your private storage servers with public cloud services such as Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership. Learn more
Build a private data cloud that syncs and shares files swiftly between multiple storage servers, letting everyone access the same set of data at their convenience.
Powered by Synology DiskStation Manager (DSM), the DS423 utilizes Btrfs, a next-generation file system, to secure data against corruption and allows users to roll back any accidental or malicious changes with instantaneous snapshots. Learn more
Manage and organize photos efficiently, back up and secure your digital data, and safeguard your physical premises with the DS423.
Store and organize photos, albums, and other media with smart and intuitive features. Back up your memories with the mobile app, and leverage privacy-focused options to share media securely with friends, family, or colleagues. Learn more
30% faster photo indexing
Safeguard your digital world and back up all your documents, files, photos, and more with license-free backup solutions.
Safeguard mobile media such as photos and videos by automatically storing remote copies onto Synology Photos or Synology Drive.
Protect your data against ransomware attacks or accidental deletion with real-time or scheduled backups of computer folders with Synology Drive.
Secure your home or business with a powerful solution to monitor, archive, and analyze footage centrally. Learn more
Connect up to 30 IP cameras by selecting from a wide variety of over 8,300 validated models or ONVIF devices.2
Monitor video streams in real time via web browsers, desktop clients, or mobile apps to protect your premises 24/7. Set up alerts and triggers to get notified of suspicious activity.
Leverage Synology solutions to back up all data stored on your DS423 onto a secondary server, external storage device, or the cloud.
Back up your Synology device, including system settings, applications, and shared folders, save space with data deduplication, and store copies to multiple destinations. Learn more
Create point-in-time snapshots of shared folders and LUNs for added protection of your data. Snapshot Replication enables an RPO as low as 5 minutes and recovery within seconds. Learn more
1 Status Indicator
2 LAN indicator
3 USB 3.2 Gen 1 port
4 Drive Status Indicators
5 Fans
6 Power Port
7 1GbE RJ-45 Ports
8 Power Button
9 Reset Button
10 Kensington Security Slot
| CPU | CPU Model | Realtek RTD1619B |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 1.7 GHz | |
| Hardware Encryption Engine |  |
|
| Memory | System Memory | 2 GB DDR4 non-ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
| Storage | Drive Bays | 4 |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | |
|
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
| External Ports | RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | |
| Notes |
|
|
| File System | Internal Drives |
|
| External Drives |
|
|
| Appearance | Size (Height x Width x Depth) | 184 mm x 168 mm x 230 mm |
| Weight | 2.21 kg | |
| Others | System Fan | 80 mm x 80 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Brightness Adjustable Front LED Indicators | |
|
| Power Recovery | |
|
| Noise Level* | 20.6 dB(A) | |
| Scheduled Power On / Off | |
|
| Wake on LAN / WAN | |
|
| Power Supply Unit / Adapter | 90 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 32.41 W (Access) 4.97 W (HDD Hibernation) |
|
| British Thermal Unit | 110.52 BTU/hr (Access) 16.95 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
| Temperature | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
|
|
| Warranty | 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus | |
| Notes |
|
|
| Environment | RoHS Compliant | |
| Packaging Content |
|
|
| Optional Accessories | ||
Notes:
