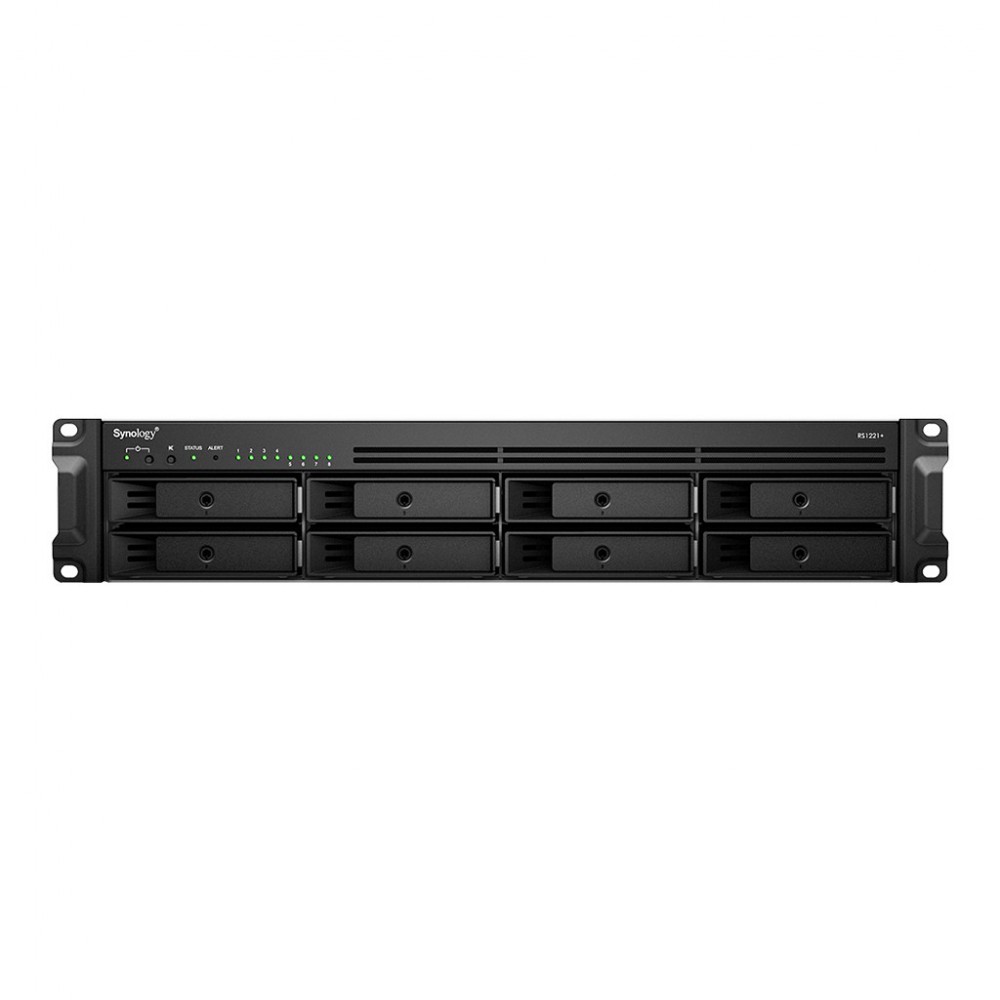

Synology RackStation RS1221+/RS1221RP+
A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.
Compact and reliable
The RS1221+/RS1221RP+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read1, the RS1221+/RS1221RP+ is equipped to handle heavy workloads in data-intensive environments. The RS1221RP+ additionally features an extra level of protection with redundant power supplies.
Download Datasheet
Compute
AMD Ryzen™ V1500B quad-core 2.2 GHz
Throughput
2,300 MB/s seq. read 100K 4K random read IOPS
Memory
4 GB ECC DDR4 Up to 32 GB
Compact
30cm depth (38cm for RP model)
A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.
- Fits into shallow rackmount enclosures
- Easy-to-install on 2-post racks
Built for reliability
Redundant power
Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.
Maximize service availability
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime.Learn more
Data integrity and protection
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.Learn more
High performance storage for anything
Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.
4KB Random IOPS
Sequential Throughput
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
RackStation RS1221+
1 Power indicator
2 Power button
3 Alert Off Button
4 Status indicator
5 Alert indicator
6 Drive status indicator
7 Drive tray
8 System fan
9 PCIe expansion slot
10 Reset button
11 USB 3.2 Gen 1 port
12 1GbE RJ-45 port
13 Expansion port
14 Console port
15 Power port
Extra protection with Extended Warranty Plus
Extend the standard 3-year hardware warranty of your RS1221+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.
Hardware Specifications
|
CPU
|
CPU Model |
AMD Ryzen V1500B |
|
CPU Quantity |
1 |
|
CPU Architecture |
64-bit |
|
CPU Frequency |
4-core 2.2 GHz |
|
Hardware Encryption Engine (AES-NI) |
 |
|
Memory
|
System Memory |
4 GB DDR4 ECC SODIMM |
|
Memory Module Pre-installed |
4 GB (4 GB x 1) |
|
Total Memory Slots |
2 |
|
Maximum Memory Capacity |
32 GB (16 GB x 2) |
|
Storage
|
Drive Bays |
8 |
|
Maximum Drive Bays with Expansion Unit |
12 (RX418 x 1) |
|
Compatible Drive Type* (See all supported drives) |
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
|
|
Hot Swappable Drive* |
|
|
Notes |
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. |
|
External Ports
|
RJ-45 1GbE LAN Port |
4 (with Link Aggregation / Failover support) |
|
USB 3.2 Gen 1 Port* |
2 |
|
eSATA Port |
1 |
|
Notes |
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. |
|
PCIe
|
PCIe Expansion |
1 x Gen3 x8 slot (x4 link) |
|
Appearance
|
Form Factor (RU) |
2U |
|
Size (Height x Width x Depth) |
RS1221+ : 88 mm x 482 mm x 306.6 mmRS1221RP+ : 88 mm x 482 mm x 407.5 mm |
|
Weight |
RS1221+ : 6.9 kgRS1221RP+ : 8.4 kg |
|
Rack Installation Support* |
RS1221+ :
- 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
- 2-post 19" rack (direct mounting)
RS1221RP+ : 4-post 19" rack (Synology Rail Kit - RKS-02) |
|
Notes |
The rail kit is sold separately |
|
Others
|
System Fan |
80 mm x 80 mm x 2 pcs |
|
Fan Speed Mode |
- Full-Speed Mode
- Cool Mode
- Quiet Mode
|
|
Power Recovery |
|
|
Noise Level* |
RS1221+ : 37.8 dB(A)RS1221RP+ : 53.5 dB(A) |
|
Scheduled Power On / Off |
|
|
Wake on LAN / WAN |
|
|
Power Supply Unit / Adapter |
RS1221+ : 250 WRS1221RP+ : 350 W |
|
Redundant Power Supply |
RS1221+ :
RS1221RP+ : |
|
AC Input Power Voltage |
100 V to 240 V AC |
|
Power Frequency |
50/60 Hz, Single Phase |
|
Power Consumption |
RS1221+ : 49.89 W (Access) 22.64 W (HDD Hibernation)
RS1221RP+ : 61.94 W (Access) 29.98 W (HDD Hibernation) |
|
British Thermal Unit |
RS1221+ : 170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation)
RS1221RP+ : 211.35 BTU/hr (Access) 102.30 BTU/hr (HDD Hibernation) |
|
Notes |
- Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
|
|
Temperature
|
Operating Temperature |
0°C to 35°C (32°F to 95°F) |
|
Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
|
Relative Humidity |
5% to 95% RH |
|
Certification
|
- FCC
- CE
- BSMI
- EAC
- CCC
- KC
- UL
- VCCI
- RCM
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus |
|
Notes |
- Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
- The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
|
|
Environment
|
RoHS Compliant |
|
Packaging Content
|
RS1221+ :
- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 1
- C13 to C14 power cord x 1
- Quick Installation Guide X 1
RS1221RP+ :
- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 2
- Quick Installation Guide X 1
|
|
Optional Accessories
|
RS1221+ :
RS1221RP+ :
|
|
Notes |
RS1221+ :
- Certain items may not be available in your location. Please contact your local distributors for more information.
- Upgrade to DSM 7.2-64551 or later before installing the M2D18.
- All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
RS1221RP+ :
- Upgrade to DSM 7.2-64551 or later before installing the M2D18.
- All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
|
