Synology SA3610

Synology
SA3610

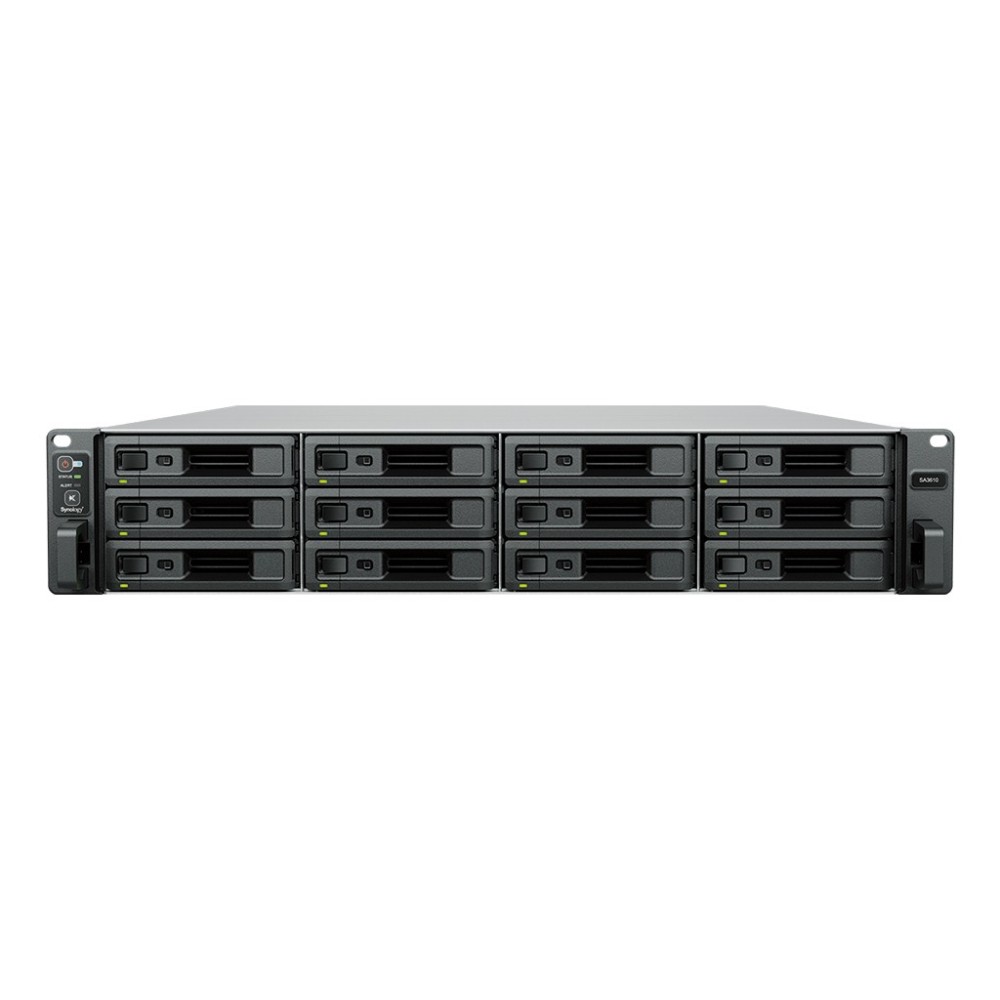

SA Series RackStation SA3610

CPU: Intel Xeon D-1567 12-core 2.1 (base) / 2.7 (turbo) GHz

RAM: 16 GB DDR4 ECC RDIMM (Max 128GB)

RJ-45 10GbE LAN Port x2

RJ-45 Gigabit LAN Port x4

Out-of-Band Management LAN Port x1

Max. Number of LAN Ports = 15

USB 3.2 Gen 1 Port x2

Expansion Port x2

PCIe Gen3 x8 slot x2

Redundant Power Supply

5 Years Warranty

----- Reference -----

Synology SA3610 12 Bays NAS, Flexible petabyte-scale storage for growing storage needs, CPU: Intel Xeon D-1567 12-core 2.1 (base) / 2.7 (turbo) GHz, RAM: 16 GB DDR4 ECC RDIMM (Max 128GB), RJ-45 10GbE LAN Port x2, RJ-45 Gigabit LAN Port x4, Out-of-Band Management LAN Port x1, Max. Number of LAN Ports = 15, USB 3.2 Gen 1 Port x2, Expansion Port x2, PCIe Gen3 x8 slot x2, Redundant Power Supply, 5 Years Warranty

Drive Bays : 12-Bays NAS
block Out Of Stock
Hurry! only 2 items left in stock.
0.00 ฿
Tax included
Quantity

Last items in stock
สอบถามรายละเอียดและข้อมูลเพิ่มเติม

Synology SA3610 & SA3410

Flexible petabyte-scale storage for growing storage needs


When scalability meets performance

The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.7 PB of storage when fully expanded.1 They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.

Download Datasheet

Fast and reliable

Fast and reliable

Over 6,200/3,000 MB/s seq. read/write,2 built-in 10GbE, and hardware and software redundancy.

Expand and adjust

Expand and adjust

Add up to 84 extra drive bays,1 40GbE or Fibre Channel,3 and SSD cache volumes4 whenever needed.

Host core applications

Host core applications

Back up 1,000+ endpoints, manage 128 IP cameras,5 or provide mailboxes for up to 1,600 users.


Flexibly expand storage capacity

Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

Flexibly expand storage capacity


Networking capabilities

Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.3


Reliable and dependable

Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.


Synology has got you covered

The SA3610 and SA3410 are backed by Synology's 5-year limited warranty,8 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

Synology has got you covered


Backed by Synology hard drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.

Enterprise Series 3.5" SAS
Enterprise Series 3.5" SATA



Hardware Specifications

Hardware Specifications
SA3610
SA3410
CPU CPU Model Intel Xeon D-1567 Intel Xeon D-1541
CPU Quantity 1 1
CPU Core 12 8
CPU Architecture 64-bit 64-bit
CPU Frequency 2.1 (base) / 2.7 (turbo) GHz 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine
Memory System Memory 16 GB DDR4 ECC RDIMM 16 GB DDR4 ECC RDIMM
Memory Module Pre-installed 16 GB (16 GB x 1) 16 GB (16 GB x 1)
Total Memory Slots 4 4
Maximum Memory Capacity 128 GB (32 GB x 4) 128 GB (32 GB x 4)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.
Storage Drive Bays 12 12
Maximum Drive Bays with Expansion Unit 96 (RX1222sas x 7) 96 (RX1222sas x 7)
Compatible Drive Type*
  • 3.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • 3.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive*
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support) 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support) 2 (with Link Aggregation / Failover support)
Out-of-Band Management LAN Port 1 1
Max. Number of LAN Ports 15 15
USB 3.2 Gen 1 Port* 2 2
Expansion Port 1 1
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe PCIe Expansion 2 x Gen3 x8 slots (x8 link) 2 x Gen3 x8 slots (x8 link)
Appearance Form Factor (RU) 2U 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm 88 mm x 482 mm x 724 mm
Weight 14.5 kg 14.5 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02) 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others System Fan 80 mm x 80 mm x 4 pcs 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 49.8 dB(A) 49.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 550 W 550 W
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase
Power Consumption 137.54 W (Access)
58.23 W (HDD Hibernation)
136.15 W (Access)
58.48 W (HDD Hibernation)
British Thermal Unit 469.30 BTU/hr (Access)
198.68 BTU/hr (HDD Hibernation)
464.56 BTU/hr (Access)
199.54 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty 5 Years 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt.  The warranty period starts from the purchase date as stated on your purchase receipt.
Environment RoHS Compliant RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.
