Synology UC3200

Synology
UC3200

UC Series RackStation UC3200

Active-active SAN storage for mission-critical environments

CPU: Intel Xeon D-1521 2.4 (base) / 2.7 (turbo) GHz

RAM: 8 GB DDR4 ECC UDIMM (Max 64GB)

RJ-45 10GbE LAN Port x1

RJ-45 Gigabit LAN Port x2

PCIe Gen3 x8 slot x1

Redundant Power Supply

5 Years Warranty

----- Reference -----

Synology UC3200 12 Bays NAS, Active-active SAN storage for mission-critical environments, CPU: Intel Xeon D-1521 2.4 (base) / 2.7 (turbo) GHz, RAM: 8 GB DDR4 ECC UDIMM (Max 64GB), RJ-45 10GbE LAN Port x1, RJ-45 Gigabit LAN Port x2, PCIe Gen3 x8 slot x1, Redundant Power Supply, 5 Years Warranty

Drive Bays : 12-Bays NAS
block Out Of Stock
Hurry! only 2 items left in stock.
0.00 ฿
Tax included
Quantity

Last items in stock
สอบถามรายละเอียดและข้อมูลเพิ่มเติม

Synology UC3200

Active-active SAN storage for mission-critical environments


Reliable, high availability SAN

Two independent controllers in the Synology UC3200 SAN work simultaneously to ensure interruption-free iSCSI and FC services.

Download Datasheet


Easily scalable

High-performance SAS drives slots and support for up to 576 TB, fully expanded, ensures the UC3200 is ready for any project. For mission-critical and sensitive data, native support for SEDs provides hardware-level encryption for all data.

Works with mainstream virtualization systems

Optimized for virtualization environments.

  • Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
  • Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
  • Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
  • Compliance with the ALUA industry standard allows hosts to identify optimized paths to increase data transfer performance and efficiency.




Engineered for iSCSI/FC SAN

DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.


5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.


Performance backed by Synology drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.1


Unified Controller UC3200

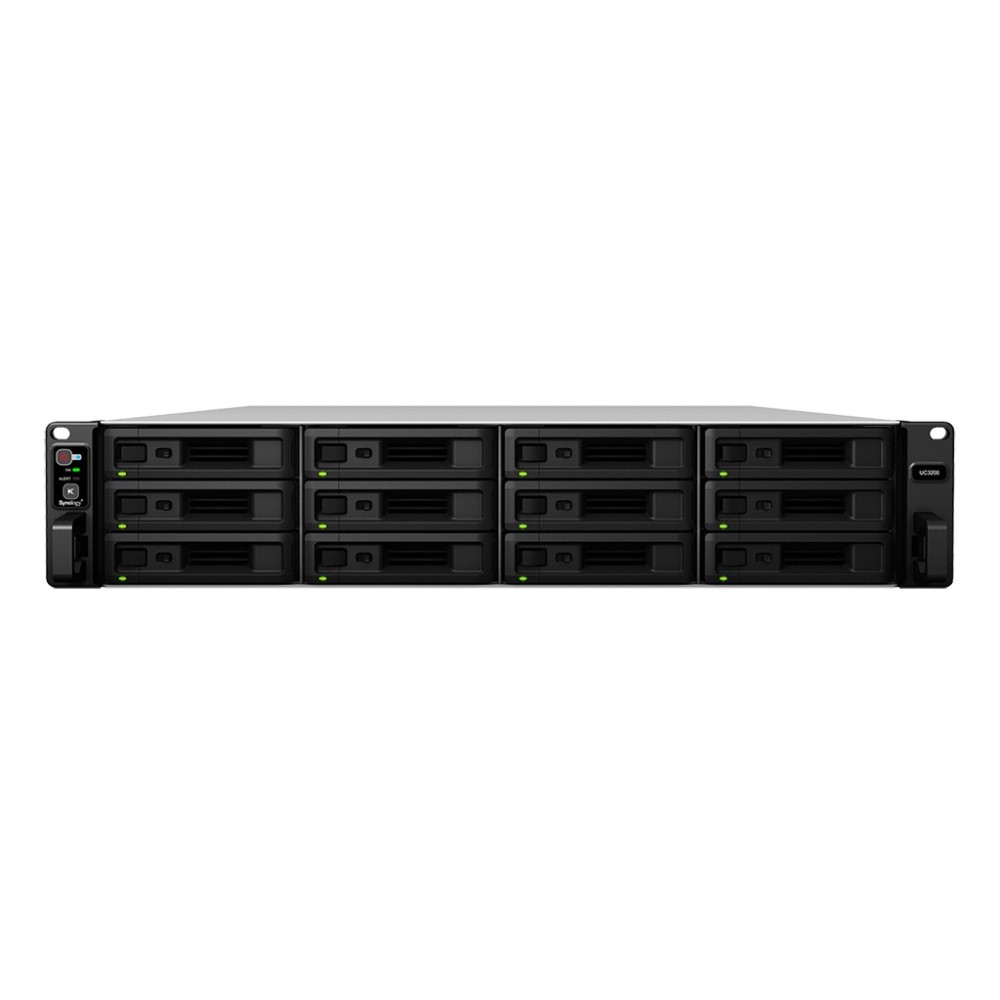

productUC3200front view photo
productUC3200back view photo
1  Power button and indicator
2  Beep off button
3  Drive tray
4  Drive status indicator
5  Power port
6  PSU indicator and beep off button
PSU fan
PCIe expansion slot
Console port
10  1GbE RJ-45 port
11  10GbE RJ-45 (10GBASE-T) port
12  Expansion port
13  Reset button
14  Power Indicator
15  Status Indicator
16  Alert Indicator
17  Remove Indicator


Hardware Specifications

Controller
Number of Controller Module 2
CPU
CPU Model Intel Xeon D-1521
CPU Quantity 1 (per controller)
CPU Architecture 64-bit
CPU Frequency 4-core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed 8 GB (8 GB x 1) (per controller)
Total Memory Slots 4 (per controller)
Maximum Memory Capacity 64 GB (16 GB x 4) (per controller)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (RXD1219sas x 2)
Compatible Drive Type* (See all supported drives)
  • 2.5” dual-port SAS SSD
  • 2.5” dual-port SAS HDD
  • 3.5” dual-port SAS HDD
Hot Swappable Drive*
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support) (per controller)
RJ-45 10GbE LAN Port 1 (per controller)
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x8 link) (per controller)
Add-In-Card Support
  • 10GbE NIC
  • 25GbE NIC
  • FC HBA
Internal Drives Btrfs
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm
Weight 19.7 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
System Fan 60 mm x 60 mm x 2 (per controller)
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 51.3 dB(A)
Power Supply Unit / Adapter 500W
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60Hz, Single Phase
Power Consumption 417.48 W (Access)
British Thermal Unit 1425.45 BTU/hr (Access)
Notes
  • Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • CE
  • FCC
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • KC
  • EAC
  • CCC
Warranty
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
