FS2500

FS Series : FlashStation FS2500

Cost-effective all-flash storage for small and medium-sized businesses

CPU: AMD Ryzen V1780B 3.35 (base) / 3.6 (turbo) GHz

RAM: 8 GB DDR4 ECC UDIMM (Max 32GB)

RJ-45 10GbE LAN Port x2

RJ-45 Gigabit LAN Port x2

USB 3.2 Gen 1 Port x2

PCIe Gen3 x8 slot x1

Redundant Power Supply

5 Years Warranty

----- Reference -----

Synology FS2500 12 Bays NAS, Cost-effective all-flash storage for small and medium-sized businesses, CPU: AMD Ryzen V1780B 3.35 (base) / 3.6 (turbo) GHz, RAM: 8 GB DDR4 ECC UDIMM (Max 32GB), RJ-45 10GbE LAN Port x2, RJ-45 Gigabit LAN Port x2, USB 3.2 Gen 1 Port x2, PCIe Gen3 x8 slot x1, Redundant Power Supply, 5 Years Warranty

Drive Bays : 12-Bays NAS
check In Stock
Hurry! only 10 items left in stock.
0.00 ฿
Tax included
Quantity

Add to Compare
Add to Wishlist
สอบถามรายละเอียดและข้อมูลเพิ่มเติม

FlashStation FS2500

Cost-effective all-flash storage for small and medium-sized businesses


Boost your applications with low-latency storage

Download Datasheet


CPU

Quad-core AMD® Ryzen™


Throughput

Up to 172,552/82,917 4K random read/write IOPS1


Form Factor

Rackmount 1U


Networking

Built-in dual 10GbE and dual Gigabit Ethernet ports


All the connectivity options you need

Ample built-in and supported networking options ensure that your applications fully benefit from the speed of all-flash arrays and make the FS2500 easy to integrate in any IT environment.

Built-in connectivity

Leverage fast transfer speeds right out of the box and integrate easily with your existing infrastructure with dual 10GbE and dual 1GbE ports.

Support for 25/40GbE

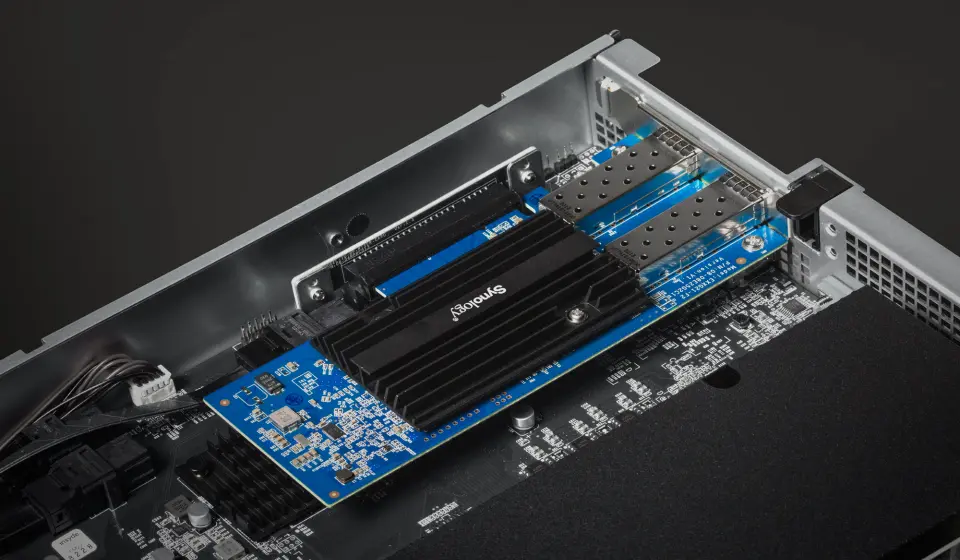

Enable faster networking with 25 or 40GbE network interface cards, thanks to the PCIe 3.0 expansion slot.2


Flash volume deduplication

Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.3

Flash volume deduplication


Complete virtualization platform

Deploy the FS2500 as fast and efficient VM storage and benefit from free native hosting, management, and protection tools in Synology DiskStation Manager (DSM).




Synology has you covered

The FS2500 is backed by Synology's 5-year limited warranty,6 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

Synology has you covered


Performance backed by Synology drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.5


FlashStation FS2500

productFS2500front view photo
productFS2500back view photo

1  Power button and indicator

2  Status Indicator

3  Alert Indicator

4  Beep off button

5  Drive Status Indicators

6  Drive Trays

7  Power Port

8  PCI Express Expansion Slot

9  PSU Indicators and Beep Off Buttons

10  PSU Fans

11  1GbE RJ-45 Ports

12  10GbE RJ-45 Ports

13  Console Port

14  USB 3.2 Gen 1 Ports

15  Reset Button


Hardware Specifications

CPU
 CPU Model AMD Ryzen V1780B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine
Memory
 System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
 Drive Bays 12
Compatible Drive Type* (See all supported drives) 2.5" SATA SSD
Hot Swappable Drive*
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Appearance
 Form Factor (RU) 1U
Size (Height x Width x Depth) 44 mm x 481.9 mm x 555.9 mm
Weight 8.3 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-01)
Notes The rail kit is sold separately
Others
 System Fan 40 mm x 40 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 57.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 350 W
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 74.83 W (Access)
British Thermal Unit 255.17 BTU/hr (Access)
Notes
  • Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
  • The power consumption of the NAS model is measured when it is fully loaded with Synology SAT5200-3840G solid-state drives.
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
  • UL
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
