FlashStation FS3410

FlashStation FS3410

Synology
FS3410

FS Series : FlashStation FS3410

CPU: Intel Xeon D-1541 2.1 (base) / 2.7 (turbo) GHz

RAM: 16 GB DDR4 ECC RDIMM (Max 128GB)

RJ-45 10GbE LAN Port x2

RJ-45 Gigabit LAN Port x4

Out-of-Band Management LAN Port x1

Max. Number of LAN Ports = 15

USB 3.2 Gen 1 Port x2

PCIe Gen3 x8 slot x2

Redundant Power Supply

5 Years Warranty

----- Reference -----

Synology FlashStation FS3410 24 Bays NAS, Economical, high-performance data management solution for SMBs, CPU: Intel Xeon D-1541 2.1 (base) / 2.7 (turbo) GHz, RAM: 16 GB DDR4 ECC RDIMM (Max 128GB), RJ-45 10GbE LAN Port x2, RJ-45 Gigabit LAN Port x4, Out-of-Band Management LAN Port x1, Max. Number of LAN Ports = 15, USB 3.2 Gen 1 Port x2, PCIe Gen3 x8 slot x2, Redundant Power Supply, 5 Years Warranty

Drive Bays : 24-Bays NAS
check In Stock
Hurry! only 10 items left in stock.
0.00 ฿
Tax included
Quantity

Add to Compare
Add to Wishlist
สอบถามรายละเอียดและข้อมูลเพิ่มเติม

FlashStation FS3410

Economical, high-performance data management solution for SMBs


Harness all-flash storage to speed up business workflows

Download Datasheet

Storage

Storage

Supports 24 x 2.5” SATA SSDs

Throughput

Throughput

Over 356,500/129,400 iSCSI 4K random read/write IOPS1

Memory

Memory

16 GB DDR4 ECC RDIMM, up to 128 GB

Expandability

Expandability

Optional 25/40GbE through PCIe 3.0 expansion

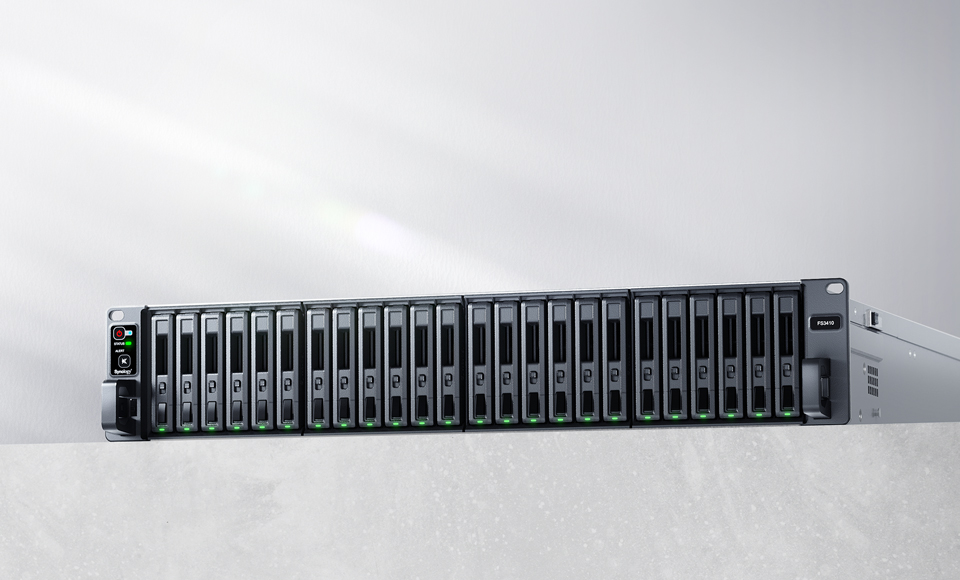

Powerful flash storage server

Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.


Powerful networking options

The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.

Built-in fast connectivity

Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.

Support for 10/25/40GbE

Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.2

Failover and network balancing

Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.


VM storage & protection

Extremely fast IOPS performance combined with support for common virtualization platforms, iSCSI SAN service management, and extensive VM protection solutions make the FS3410 ideal for supporting and protecting VMs.

Efficient and reliable SAN VM storage

SAN management is a breeze thanks to SAN Manager, which provides LUN management, global monitoring, iSCSI configuration and disk space optimization from a single, intuitive interface.

Deploy and facilitate storage operations in various virtualization environments with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and a Kubernetes CSI driver for integrated volume management.

Synology High Availability provides automatic minute-level failover of stored VMs by pairing up two FS3410 units to create a high-availability cluster.

Maximize space efficiency

VM and container storage on all-flash arrays can take advantage of volume-wide data deduplication, which removes identical data to optimize storage use.3

Reliable VM backups at no extra cost

Back up unlimited VMware vSphere and Microsoft Hyper-V virtual machines from physical servers using Active Backup for Business. When unexpected interruptions occur or in upgrade testing environments quickly migrate them to Virtual Machine Manager (VMM).4

Block-level LUN snapshots and backups

Leverage Snapshot Replication for point-in-time snapshots of LUNs and shared folders with an RPO as low as 5 minutes. Replications can be managed in vCenter Site Recovery Manager and can be directly recovered via VMware vCenter Server for a simplified recovery process.

Use Hyper Backup for full data LUN and shared folder backups to a local or remote Synology system.


Synology has you covered

The FS3410 is backed by Synology's 5-year limited warranty,6 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.


Backed by Synology drives

Leverage high sustained performance and reliability with enterprise-grade drives designed specifically for Synology systems.7 Gain access to advanced features such as volume-wide data deduplication, lifetime analytics, and automatic firmware upgrades.


FlashStation FS3410

product FS3410 front view photo
product FS3410 back view photo

1  Power Button and Indicator

2  Status Indicator

3  Alert Indicator

4  Mute Button

5  Drive Status Indicators

6  Drive Trays

7  Rail Kit Release Tabs

8  PSU Fans

9  Power Ports

10  PSU Indicators

11  Console Port

12  PCI Express Expansion Slots

13  1GbE RJ-45 Ports

14  10GbE RJ-45 Ports

15  USB 3.2 Gen 1 Ports

16  Management Port

17  Reset Button


Hardware Specifications

CPU
 CPU Model Intel Xeon D-1541
CPU Quantity 1
CPU Core 8
CPU Architecture 64-bit
CPU Frequency 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine
Memory
 System Memory 16 GB DDR4 ECC RDIMM
Memory Module Pre-installed 16 GB (16 GB x 1)
Total Memory Slots 4
Maximum Memory Capacity 128 GB (32 GB x 4)
Storage
 Drive Bays 24
Compatible Drive Type* (See all supported drives) 2.5" SATA SSD
Hot Swappable Drive*
External Ports
 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
Out-of-Band Management LAN Port 1
Max. Number of LAN Ports 15
USB 3.2 Gen 1 Port* 2
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Appearance
 Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 15.0 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 46.1 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 550 W
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 113.84 W (Access)
British Thermal Unit 388.70 BTU/hr (Access)
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
