FlashStation FS6400

Synology
FS6400

FS Series FlashStation FS6400

Blazingly-fast all-flash server aiming for I/O-intensive applications

CPU: Intel Xeon Silver 4110 2.1 (base) / 3.0 (turbo) GHz

RAM: 32 GB DDR4 ECC RDIMM (Max 512GB)

RJ-45 10GbE LAN Port x2

RJ-45 Gigabit LAN Port x2

Expansion Port x1

USB 3.2 Gen 1 Port x2

PCIe Gen3 x8 slot x2

Redundant Power Supply

5 Years Warranty

----- Reference -----

Synology FlashStation FS6400 24 Bays NAS, Blazingly-fast all-flash server aiming for I/O-intensive applications, CPU: Intel Xeon Silver 4110 2.1 (base) / 3.0 (turbo) GHz, RAM: 32 GB DDR4 ECC RDIMM (Max 512GB), RJ-45 10GbE LAN Port x2, RJ-45 Gigabit LAN Port x2, Expansion Port x1, USB 3.2 Gen 1 Port x2, PCIe Gen3 x8 slot x2, Redundant Power Supply, 5 Years Warranty

Drive Bays : 24-Bays NAS
block Out Of Stock
Hurry! only 2 items left in stock.
0.00 ฿
Tax included
Quantity

Last items in stock
สอบถามรายละเอียดและข้อมูลเพิ่มเติม

FlashStation FS6400

Blazingly-fast all-flash server aiming for I/O-intensive applications


CPU

Dual Intel® Xeon® Silver 8-core with NUMA


Memory

DDR4 ECC RDIMM, up to 512GB


High Performance

Over 240,000 iSCSI 4K random write IOPS


Scalability

Up to 72 drives with FX24211


Fast and reliable networking

With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.


Complete iSCSI and virtualization solutions

Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.



Compared with traditional RAID, RAID F1 distributes uneven workload to SSDs to prevent all drives from wearing out simultaneously.


Flash volume deduplication

Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.2


5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.


Performance backed by Synology drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.3


FlashStation
FS6400

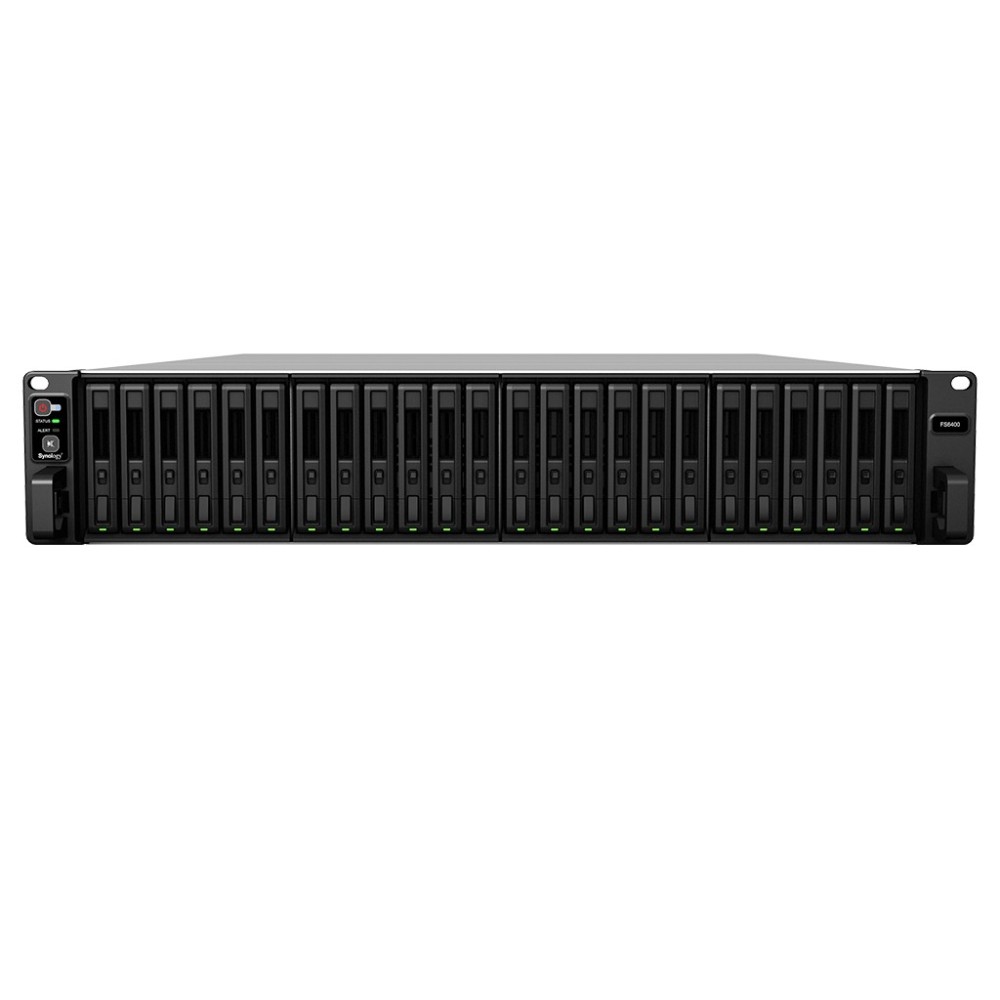

productFS6400front view photo
productFS6400back view photo

Power button and indicator

Beep off button

Drive tray

Drive status indicator

PSU fan

Power port

PSU indicator

Console port

Reset button

10  1GbE RJ-45 port

11  10GbE RJ-45 (10GBASE-T) port

12  USB 3.0 port

13  PCIe expansion slot

14  Expansion port

CPU
CPU Model Intel Xeon Silver 4110
CPU Quantity 2
CPU Core 8
CPU Architecture 64-bit
CPU Frequency 2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine
Memory
System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (16 GB x 2)
Total Memory Slots 16
Maximum Memory Capacity 512 GB (32 GB x 16)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
Storage
Drive Bays 24
Maximum Drive Bays with Expansion Unit 48 (RX1217sas x 2) / 72 (FX2421* x 2)
Compatible Drive Type* (See all supported drives)
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 2.5" SATA SSD
Hot Swappable Drive*
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
Expansion Port 1
Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Appearance
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 17.26 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 53.7 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 800 W
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 288.49 W (Access)
145.8 W (HDD Hibernation)
British Thermal Unit 984.37 BTU/hr (Access)
497.49 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM
Warranty
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes
  • It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here.
  • Expansion Unit FX2421 can only be used with identical expansion units.

: FS6400
: 2 Items
Hurry! only 2 items left in stock.
