Synology E10G22-T1-Mini
10GbE RJ-45 network upgrade module for compact Synology servers
Maximize bandwidth to tackle heavy-duty applications
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.1 Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.
Throughput
Expand system capabilities with 10GbE connectivity
Flexibility
Integrate easily with support for 10/5/2.5/1 Gbps networks
Compatibility
Designed for maximum performance and reliability in Synology systems

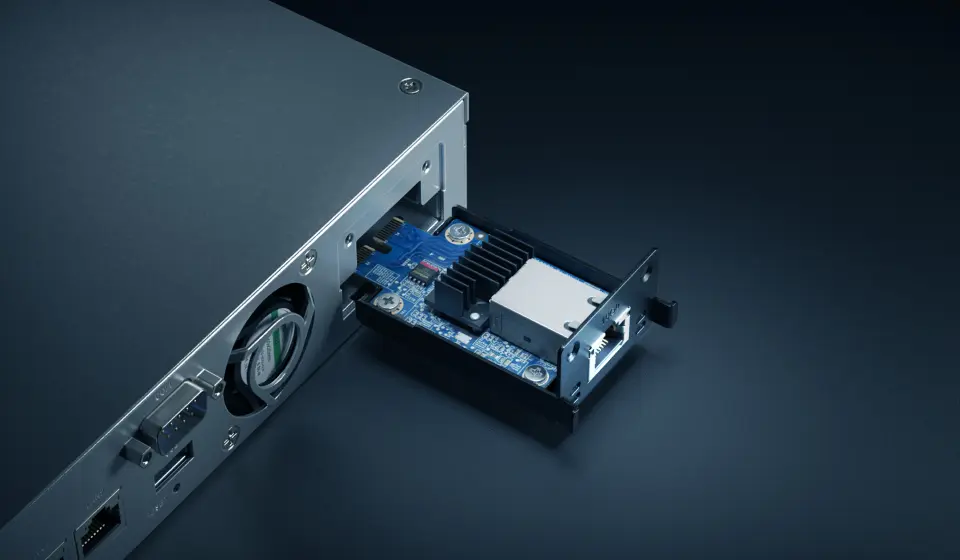

Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures. Check compatibility

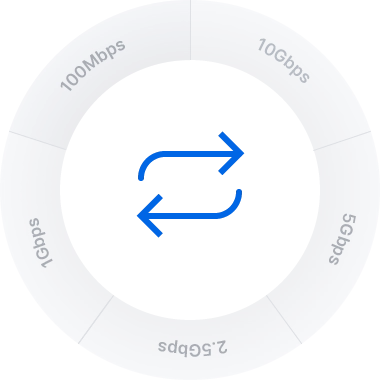

Multi-gig support
Integrates easily into any network using standard Ethernet cabling. Autonegotiation automatically determines the best data rate (between 10, 5, 2.5, 1 Gbps, and 100 Mbps) for your network environment, simplifying network setup.
Notes:
-
Only available on models equipped with a dedicated Network Upgrade Slot. To see if a model is compatible, please check our compatibility list
Hardware Specifications
|
General
|
Host Bus Interface |
PCIe 3.0 x2 |
|
Size (Height x Width x Depth) |
26.37 mm x 45.38 mm x 75.7 mm |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
|
Relative Humidity |
5% to 95% RH |
|
Warranty |
3 Years |
|
Notes |
The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
|
Network
|
IEEE Specification Compliance |
- IEEE 802.3x Flow Control
- IEEE 802.3u Fast Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
- IEEE 802.3an 10Gbps Ethernet
|
|
Data Transfer Rates |
10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |
|
Supported Features |
- 9 KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
- TCP Segmentation Offload (TSO)
- Large Send Offload (LSO)
- Receive Side Scaling (RSS)
- Generic Receive Offload (GRO)
- Generic Segmentation Offload (GSO)
|
|
Compatibility
|
|
Applied Models
|
- 23 series:DS923+, DS723+
- 22 series:RS422+, DS1522+
|
|
Notes |
DSM version requirement: 7.1.1-42962 Update 4 or later version |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
