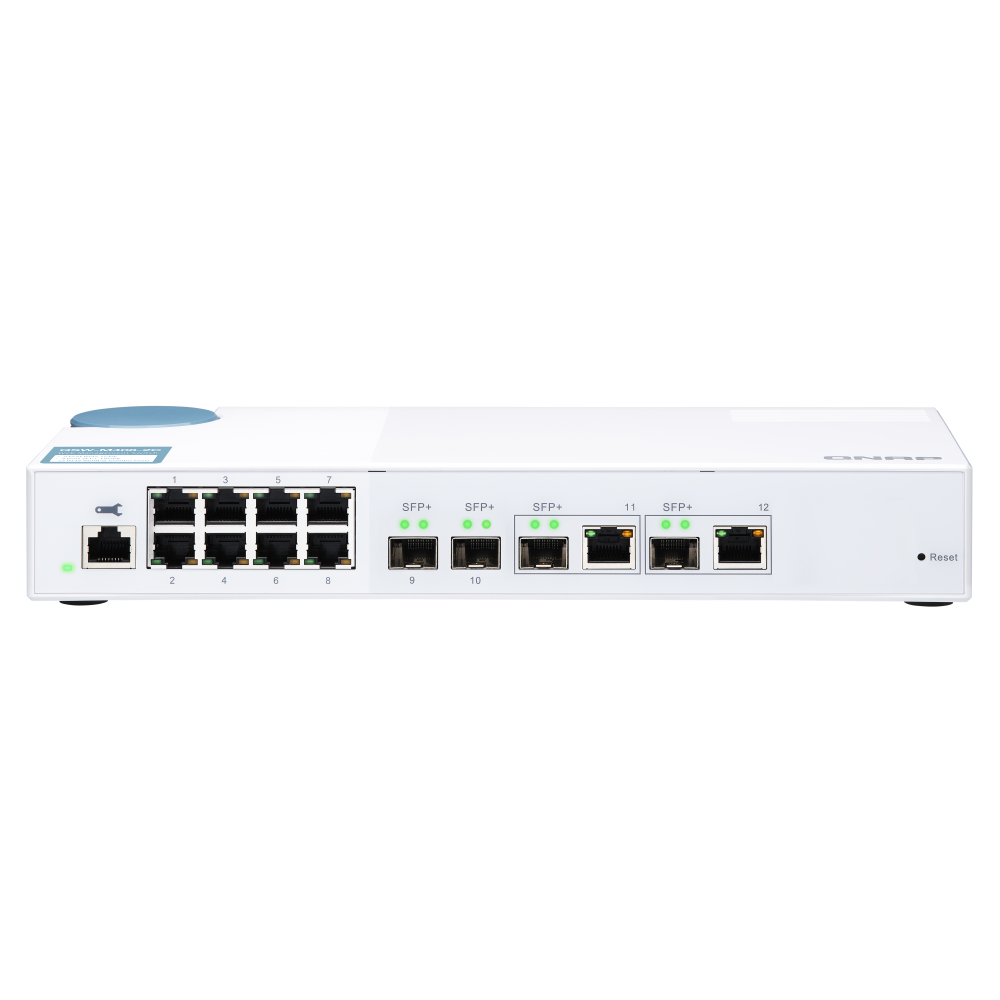

QNAP QSW-M408-2C
Entry-level 10GbE Layer 2 Web Managed Switch for SMB Network Deployment
Datasheet
The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security. The QSW-M408-2C is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
NBASE-T Ethernet
The QSW-M408-2C is equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-2C offers higher transmission speeds when used with existing cables.
User-friendly management interface
Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
Layer 2 network
The QSW-M408-2C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.
RSTP protocol
The QSW-M408-2C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.
Flow Control
Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-2C avoids packet loss from unparalleled bandwidth.
Online OS update
QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G / 5G / 2.5G / 1G / 100M).
QSS: Intuitive Network Management Software with Web GUI
The QSW-M408-2C uses the QNAP Switch System (QSS), which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Learn More: QSS
Sleek Design
Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.
GUI
The visual illustration matches physical ports for greater usability.
Value-added Functions
With the setting guide, status chart reference, online firmware update, the learning and management costs are greatly reduced.
QSS: The human-centered setting guide
QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW-M408-2C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) for boosting network performance through IP grouping and bandwidth management.
| LACP |
VLAN |
QoS |
IGMP Snooping |
- Bandwidth allocation
- Bandwidth expansion |
- Communication Efficiency
- Flexible Segmentation |
- Traffic control
- Prioritizing bandwidth |
- Status snooping
- Traffic reduction |
Powerful security and system functions
The QSW-M408-2C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
| ACL |
LLDP |
RSTP |
Flow Control |
- Access controls
- Security system |
- Device disclosure
- Troubleshooting |
- Loop prevention
- Backup path |
- Balance speed
- Jam prevention |
Faster speeds using existing cables with 10GBASE-T & NBASE-T
The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.
Note: To achieve 10Gb/s speeds, if the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used.
|
CAT 5e |
CAT 6e |
CAT 6A & CAT 7 |
| 100M |
 |
|
|
| 1G |
|
|
|
| 2.5G |
|
|
|
| 5G |
|
|
|
| 10G |
 |
(55m)
(CAT 6: less then 45m) |
|
Improve team productivity with a 5GbE/ 10GbE High-Speed Network
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE/5GbE/2.5GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M408-2C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.
Learn More: QNAP 10GbE NAS Solution, QNAP 10GbE Network Expansion Card, QNAP USB 3.2 Gen 1 to 5GbE Network Adapter, QNAP Thunderbolt 3 to 10GbE Network Adapter
Desktop size for easy use in offices
With a compact and modern design, the QSW-M408-2C fits perfectly alongside other devices in modern digital offices. Featuring a delicate white or textured surface design, the QSW-M408-2C helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-M408-2C. Being fully plug-and-play, simply connect the QSW-M408-2C to your devices and it will do the rest.
Hardware Specification
QSW-M408-2C
| Management Type |
Web Managed |
| Number of Ports |
12 |
| 10GbE SFP+ |
2
10G/1G
|
| 10GbE SFP+/RJ45 Combo Ports |
2
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
|
| 1GbE (RJ45) |
8 |
| Power Supply Description |
Adapter |
| Max. Power Consumption |
22.04 W |
| Input Power Type |
AC |
| Input Voltage Range |
100-240VAC, 50/60 Hz |
| MAC Address Table |
16K |
| Total Non-Blocking Throughput |
48Gbps |
| Switching Capacity |
96Gbps |
| Management Interface |
Web |
| Console |
RJ45 |
| Fan |
PWM double ball bearing fan x 1 |
| Supported Standards |
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service |
| Form Factor |
Desktop |
| LED Indicators |
Per Port: Speed/Link/Activity
Per System: Power/Status |
| Buttons |
Reset button |
| Dimensions (HxWxD) |
42.5 × 290 × 127 mm |
| Weight (Net) |
1.15 kg |
| Weight (Gross) |
1.57 kg |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Relative Humidity |
5~95% Non-condensing |
| Certifications |
CE, FCC, VCCI, BSMI, CCC |
| Electromagnetic Compliance |
CLASS A |
| Jumbo Frames |
9K |
| Warranty |
2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
