QNAP QSW-M2106PR-2S2T

QNAP QSW-M2106PR-2S2T

Half-width Rackmount 10GbE and 2.5GbE PoE++ Layer 2 Web Managed Switch for New-generation Wi-Fi Deployment

• Watch Video
• Slides

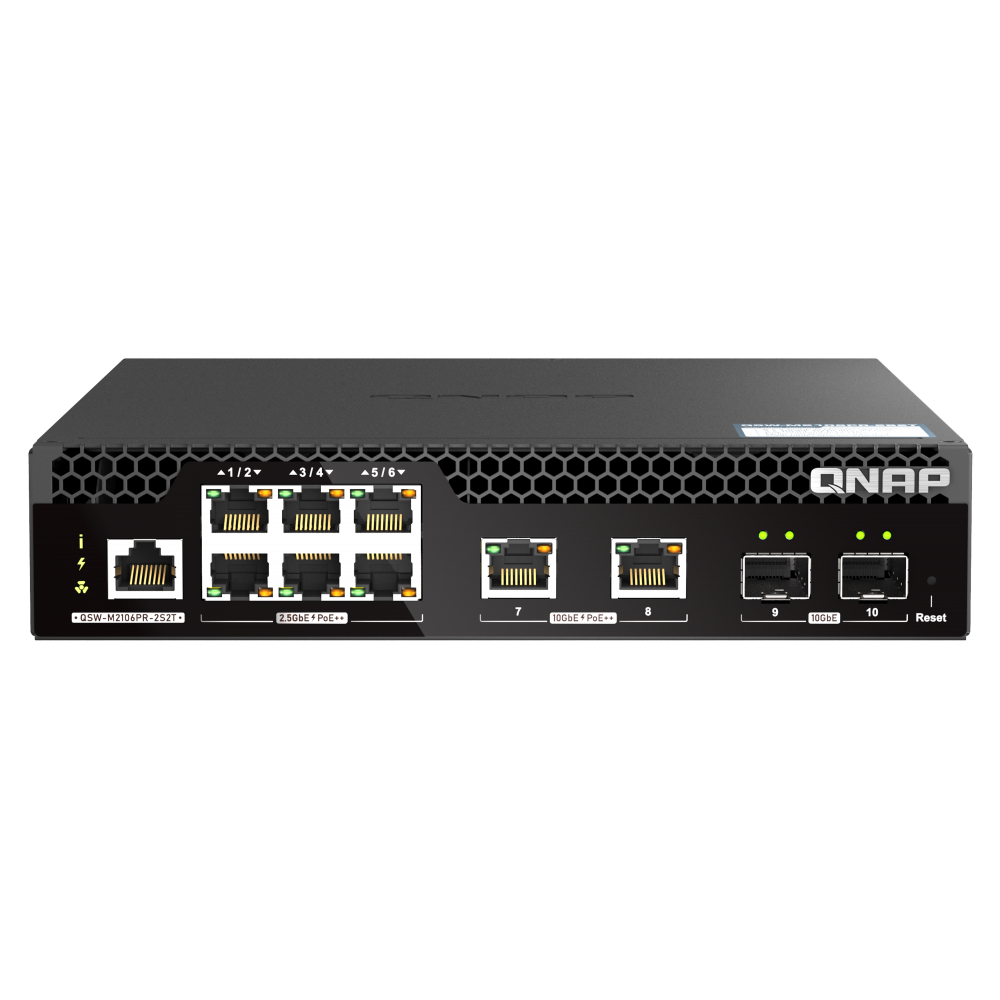

The QNAP QSW-M2106PR-2S2T is a half-width rackmount L2 PoE Managed Switch with six 90-watt 2.5GbE PoE++ ports, two 90-watt 10GbE PoE++ ports and two 10GbE SFP+ fiber ports. Providing a total power budget of 310 watts, the QSW-M2106PR-2S2T enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6/Wi-Fi 6E/Wi-Fi 7 Access Points and Routers. The QNAP Switch System (QSS) features a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2106PR-2S2T offers SMBs a cost-optimized and centrally managed LAN deployment solution. With a half-width design, two QSW-M2106PR-2S2T can be installed in a 1U rack space for space-saving. The QSW-M2106PR-2S2T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

10G Multi-Gig connectivity

Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).

2.5Gb Ethernet connectivity

Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.

90W PoE++

Can supply a total power budget of 310 watts to meet the demands of high-powered devices (PDs).

User-friendly management interface

IT administrators can efficiently control Layer 2 and PoE networks, including network connection status and power consumption information, making central management of high-power devices intuitive and easy.

Layer 2 network

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.

Online OS update

Update QSS with just one click to help ensure network security.

10GbE/2.5GbE for Ultra-high-speed Wi-Fi Applications

From Wi-Fi 6 to Wi-Fi 6E and even the Wi-Fi 7, ultra-high-speed and high-power APs and Routers are driving up access point uplink requirements. Supporting multiple 10GbE/2.5GbE ports, the QSW-M2106PR-2S2T breaks through the bandwidth limitations of cabled and wireless networks to enhance your storage and access experience. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2106PR-2S2T provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium businesses, hotels, and stores.

High PoE Capability– up to Eight-port 90W PoE++ and 310 Total Power Budget

The QSW-M2106PR-2S2T is compliant with the IEEE 802.3bt PoE++ standard and offers 2-port 10GbE and 6-port 2.5GbE 90-watt PoE++ capabilities. The QSW-M2106PR-2S2T can supply a total power budget of 310 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

Half-width design, two models in 1U

With a half-width rackmount design, a QSW-M2106PR-2S2T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M2106R-2S2T) for efficient physical space utilization and tidy cabling.

Note: The optional SP-EAR-QSW2FOR1-01 rackmount kit is required if two half-width rackmount switches are installed.

Flexible deployment with multiple 10G SFP+ fiber and Multi-Gigabit ports

The QSW-M2106PR-2S2T provides two 10GbE SFP+ ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M2106PR-2S2T is 110Gbps, guaranteeing the full potential of each port.

	CAT 5e	CAT 6e	CAT 6A & CAT 7
100M
1G
2.5G
5G
10G		(55m) (CAT 6: less then 45m)

Note 1: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 (copper) ports support up to five speeds (10G / 5G / 2.5G / 1G / 100M).

Note 2: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

Dependable performance with effective heat dissipation

With a compact metal body, the QSW-M2106PR-2S2T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.

Optimize Network Performance with bandwidth and packet control

The QSW-M2106PR-2S2T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

Powerful security and system functions

The QSW-M2106PR-2S2T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

Extend hardware warranty up to 5 years

The QSW-M2106PR-2S2T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specification

QSW-M2106PR-2S2T
