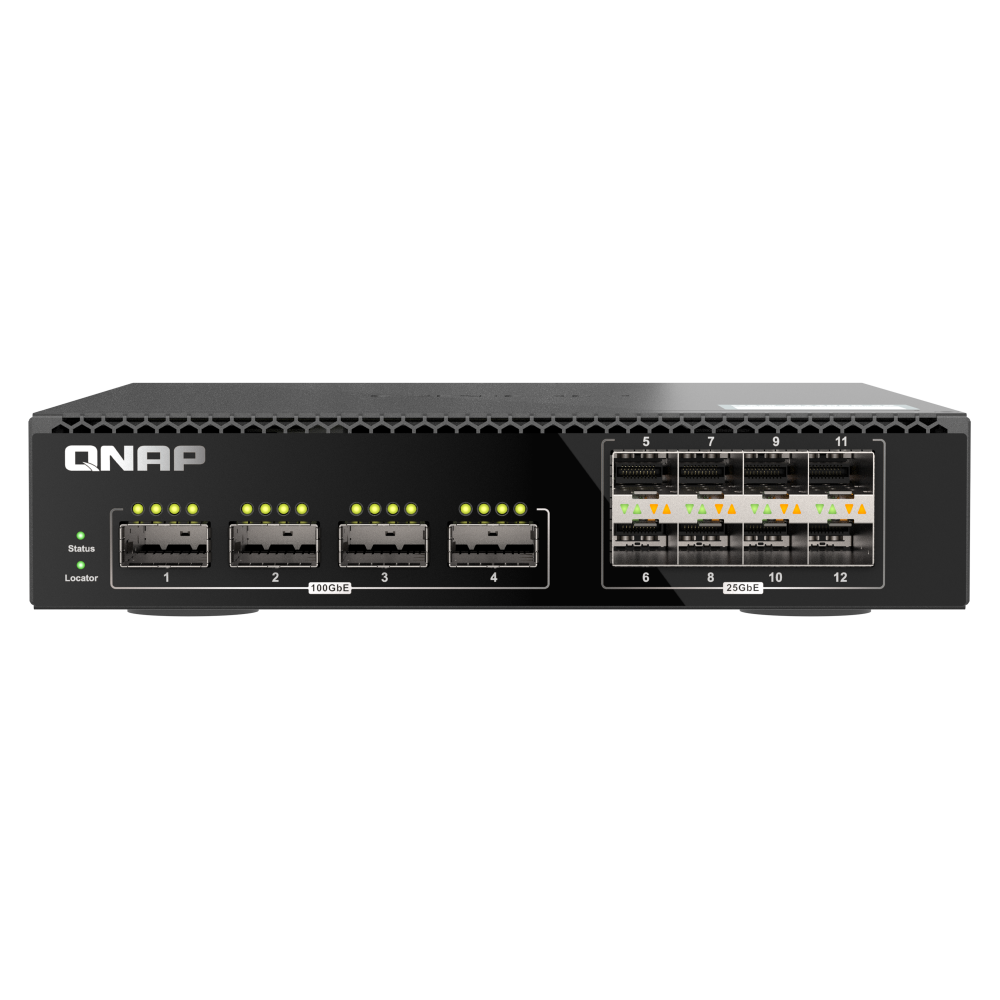

QNAP QSW-M7308R-4X
Half-width Rackmount 100GbE L3 Lite Managed Switch, cost-optimized for enterprise IT
The QSW-M7308R-4X is a 100GbE L3 Lite Managed Switch with four 100GbE QSFP28 and eight 25GbE SFP28 ports. The QSW-M7308R-4X can uplink to 100G/25G servers and NAS in server rooms or connect to 100G/25G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. With competitive pricing, space-saving features and MC-LAG switch redundancy ensuring continuous network, the QSW-M7308R-4X enables businesses to quickly upgrade to an ultra-high-speed backbone network infrastructure for building secure and reliable high-speed network transmission and storage solutions. The QSW-M7308R-4X is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
QSW-M7308R-4X now comes with QSS Pro offering L3 Lite management. Models shipped with QSS can be updated to use QSS Pro.
100GbE/25GbE Network
Includes four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports to offer a backbone switching capacity of 1200Gbps for uplinking server rooms.
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
Space-saving half-width design
One of the few compact 100GbE switches on market, the QSW-M7308R-4X, can be installed in a 1U rack space with another half-width rackmount switch for efficient physical space utilization.
Compatible with QNAP NAS
Supports FEC (Forward Error Correction) and IEEE-802.3ap Auto-Negotiation for high compatibility to connect to QNAP 25GbE NAS or NAS installing 100G network cards for high-performance, low-latency computing.
User-friendly management interface
The user-friendly QNAP Switch System (QSS) Pro centralizes and simplifies central network management with an overview dashboard, port management, and settings guide.
Embrace the ultra-high-speed 100GbE network generation!
According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads.
Resource: IDC, Dell’Oro Group
With the prevailing 10GbE and 25GbE networks, explosive growth of big data transmission and high-density workloads is driving demands for ultra-high-speed 100GbE networks. The QSW-M7308R-4X 100GbE switch assists enterprises in deploying 100GbE networks in the existing network infrastructure with cost-effectiveness, resolving performance bottlenecks.
Media professionals
4K/8K video transmission xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Storage Centers
Big Data applications
Medium to large enterprises
Cloud & AI computing
Smart medicine
DNA sequence computing
The best 100GbE network switch for SMBs
Cost-optimal
The QSW-M7308R-4X offers 1200Gbps switching capacity at a budget-friendly price. Businesses can flexibly deploy medium-to-large scale high-speed network infrastructure using the QSW-M7308R-4X coupled with QNAP 25GbE/10GbE switches.
Learn More: Future-ready Network Switches
Compact
Two half-width rackmount QSW-M7308R-4X can be installed in a 1U rack space, or with another half-width rackmount switch.
Best for QNAP NAS
Ultra-high-speed 100GbE switches can connect to QNAP 25GbE NAS or NAS installing 100G network cards fulfilling high bandwidth demands for high-density I/O data transmission.
Learn More: Complete 10GbE and 25GbE network solutions
High switching capacity of 1200Gbps for backbone networks
The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports and offers a backbone switching capacity of 1200Gbps, guaranteeing the full potential of each port. The QSW-M7308R-4X can uplink to 100G servers and NAS in server rooms or connect to 25GbE switch QSW-M5216-1T.
Half-width design, two models in 1U
With a half-width rackmount design, a QSW-M7308R-4X can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M7308R-4X and QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.
The optional SP-EAR-QSW2FOR1-01 rackmount kit is required if two half-width rackmount switches are installed.
Flexible deployment with multiple 100GbE and 25GbE ports
The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP interfaces, and the 100GbE QSFP28 interface can be uplinked to 100GbE+ core switches, or connected to 100GbE+ servers/NAS directly.*
Learn More: QNAP 25GbE NAS solution, QNAP 100GbE/25GbE/10GbE network cards
The 100GbE QSFP28 interfaces DO NOT support breakout cables.
100GbE QSFP28
Use QSFP28 DAC (Direct Attach Copper) or transceivers to connect to servers and switches with 100GbE QSFP28 interfaces, or NAS installing 100GbE network cards.
25GbE SFP28
Use SFP28 DAC (Direct Attach Copper) or transceivers to connect to NAS, servers, and switches with 25GbE SFP28 fiber interfaces.
Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing
Connect a QSW-M7308R-4X to multiple NAS with 100GbE/25GbE network cards to offer 100GbE/25GbE connectivity. Up to 200GbE network transmission can be achieved connecting to a NAS with a QXG-100G2SF-CX6 installed.
Learn More: QNAP 100GbE network card (QXG-100G2SF-E810), QNAP dual-port 100GbE network card (QXG-100G2SF-CX6), QNAP 25GbE network card (QXG-100G2SF-E810), QNAP dual-port 25GbE network card (QXG-25G2SF-CX6), QNAP 100GbE QSFP28 1.5M DAC (CAB-DAC15M-Q28), QNAP 25GbE SFP28 3M DAC (CAB-DAC30M-SFP28), QNAP 25GbE SFP28 1.5M DAC (CAB-DAC30M-SFP28)
100GbE to 100GbE with more NAS
Connect multiple NAS with the QXG-100G2SF-CX6 or QXG-100G2SF-E810 installed to form a high-speed storage environment.
Up to 200GbE total bandwidth for NAS
Connect two 100GbE ports on the QXG-100G2SF-CX6 to the QSW-M7308R-4X to achieve 200Gb total bandwidth for the NAS.
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
Scalability
When scaling your network, additional network switches are required for more end devices. Deploying a L3 Lite switch helps realize granular control over large-scale segmented networks.
High-performance
High-performance network transmission is essential for critical business applications and services. A L3 Lite switch effectively satisfies the high-performance network demands in AI, multimedia, and virtualization applications.
Security
Having trouble with the complicated connections in the medium to large-scale networks? A L3 Lite switch provides an IP routing table to both boost connection security and simplify security management.
Enterprise IP routing, network high availability and high-performance demands
IP routing
Forwards packets through IP addresses to enable communication between devices in different network segments, or efficiently connect between different segments and subnets to achieve more complicated network segments based on functions.
MC-LAG network redundancy
Combines multiple connections between switches into a single, logical link. This logical link provides high availability and redundancy for client devices as it can continue to function even if one or more of the physical links fail.
LACP
Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure.
Dependable performance with effective heat dissipation
With a compact metal body, the QSW-M7308R-4X provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.
Hardware Specification
QSW-M7308R-4X
| Management Type |
L3 Lite Web Managed |
| Number of Ports |
12 |
| 100GbE QSFP28 |
4 |
| 25GbE SFP28 |
8 |
| Management Port |
1 x 1GbE RJ45 |
| Power Supply Description |
Internal Power supply unit |
| Max. Power Consumption |
55.153W |
| Input Power Type |
AC |
| Input Voltage Range |
100-240VAC, 50/60Hz |
| MAC Address Table |
32K |
| Total Non-Blocking Throughput |
600Gbps |
| Switching Capacity |
1200Gbps |
| Management Interface |
Web |
| Console |
RJ45 |
| Fan |
PWM VAPO Bearing fan x 2 |
| Supported Standards |
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service |
| Form Factor |
Half-width rackmount |
| LED Indicators |
Per Port: Speed/Link/Activity
Per System: Power/Status/Locater |
| Buttons |
Reset button |
| Dimensions (HxWxD) |
43.3 x 207 x 248.8 mm |
| Weight (Net) |
1.78 kg |
| Weight (Gross) |
2.63 kg |
| Operating Temperature |
0˚C to 40°C (32°F to 104°F) |
| Relative Humidity |
5~95% Non-condensing |
| Certifications |
CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance |
CLASS A |
| Jumbo Frames |
9K |
| Warranty |
2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
