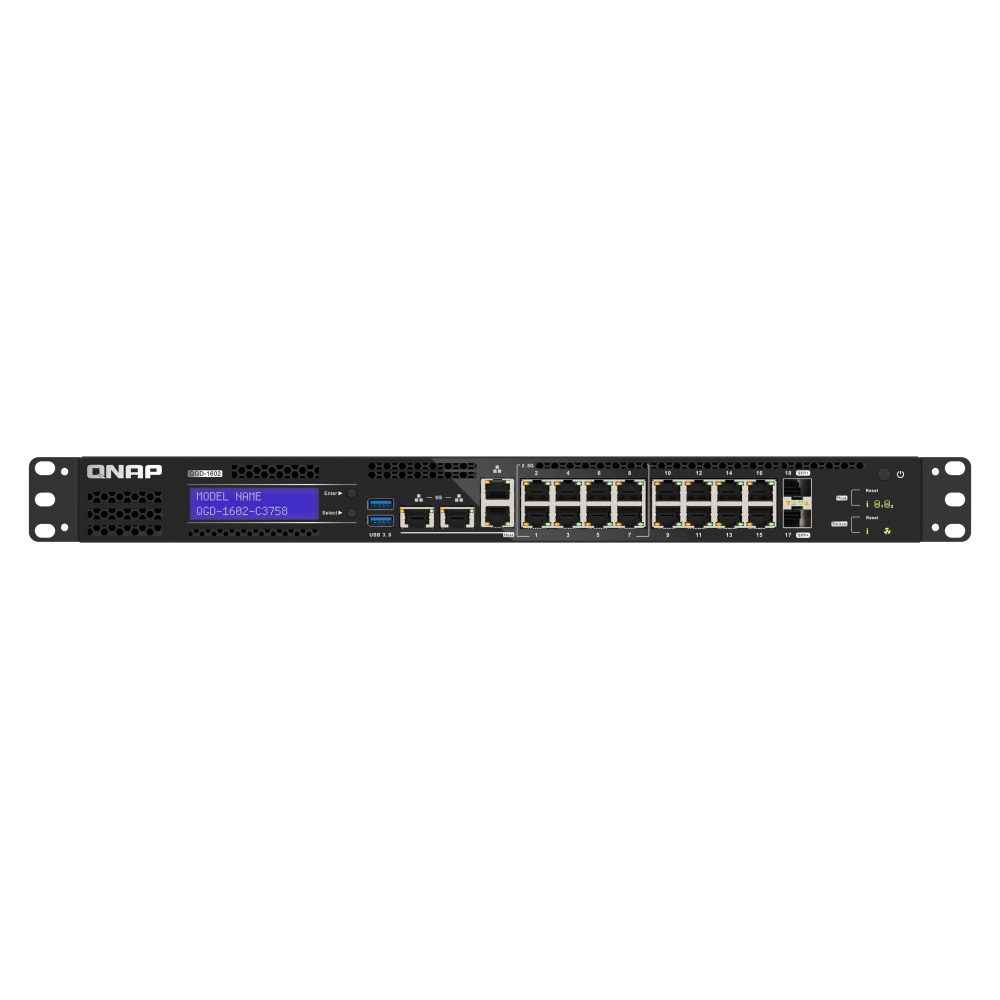

QNAP QGD-1602-C3758-16G
Smart Edge Switch with 2.5GbE and 10GbE Capability
The QNAP QGD-1602 is the world’s first managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports, the QGD-1602 allows you to build a high-speed network infrastructure. With a dual-CPU design, the QGD-1602 uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602 not only fulfills IP surveillance, network security and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602 achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.
10GbE connectivity
Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
Layer 2 network
Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.
Dual M.2 PCIe slots
Set up an SSD cache or storage pools to increase file access efficiency.
Two SATA drive bays
Supports up to two SATA drives.
Flexible PCIe expansion
Two PCIe Gen3 x2 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.
Mesh VPN
Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.
Available Models
QGD-1602-C3558-8G
8 x 2.5GbE Gigabit RJ45 ports, 8 x Gigabit RJ45 ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3558 quad-core 2.2 GHz processor, 8 GB DDR4 RAM, supports hosting up to 4 VMs
QGD-1602-C3758-16G
8 x 2.5GbE Gigabit RJ45 ports, 8 x Gigabit RJ45 ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3758 octa-core 2.2 GHz processor, 16 GB DDR4 RAM, supports hosting up to 6 VMs
Upgraded performance for smoother virtualization
The QGD-1602 provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.
8 -core
CPU (Max.)
10 GbE
network
20 Gbps
Internal bandwidth capacity
64 GB
RAM (Max.)
6 VMs
Sturdy hardware with Intel QAT for optimized performance
The QGD-1602 uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602 also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.
Intel® QAT is supported when using QTS 4.4.3 (or later).
The First Switch Series with VM Support
The Guardian supports QNAP’s QTS operating system and is the world’s first switch series that can host virtual machines, containers, and provide other cloud applications - enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open-source software applications. The Guardian provides SMBs with not only an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices at multiple sites. The dual-processor Guardian enables you to independently run the networking management interfaces (QSS - QNAP Switch System) and QTS. The Guardian provides a user-friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.
Learn More: QVR Pro, VJBOD, Virtualization Station, pfSense
QTS and QSS can work independently without interference to ensure continuous operation. For example, when restarting QTS, the QSS connections will not be interrupted; when rebooting QSS, the VMs on QTS will keep running.
Faster wired and wireless transmission
The QGD-1602 has eight 2.5GbE ports and eight Gigabit ports for connecting various high-speed devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches. The additional two 5GbE and two Gigabit host management ports can be connected to multiple hosts or LAN devices to improve LAN efficiency. The switching capacity of QGD-1602 is 96Gbps, guaranteeing the full potential of each port. By installing an 802.11ac Wireless Adapter and the WirelessAP Station App, the QGD-1602 can work as an access point for connecting multiple edge devices and offer wireless speeds up to 2533Mbps.
20GbE Internal Bandwidth for Virtualized Applications
QTS can directly access to and control the data processed in QSS using Virtual Switches. The QGD-1602 provides 20GbE internal bandwidth to accelerate computing between end devices and hosts. The additional two 5GbE and two Gigabit host management ports can also be connected to multiple hosts for deploying multiple virtual machines.
QuNetSwitch: Layer 2 Management with User-friendly Web GUI
The QGD-1602 provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake-on-LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD-1602 also offers the user-friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management networks. The overview dashboard and statistical analysis area displays all the information about the switch and devices at a glance, making centralized management of devices intuitive and easy.
| Port Management |
VLAN |
Port Trunking |
QoS |
- Port status
- Port statistics
- Port configuration
- Jumbo frame support
- IEEE 802.3x flow control
- Auto-negotiation of speed and duplex modes |
- VLAN configuration
- Port-based private VLAN
- IEEE 802.1Q-based VLAN |
- Port trunking
- LACP groups |
- Bandwidth control
- Traffic classification |
| IGMP |
Security |
Management |
Advanced Applications |
| - IGMP snooping v2/v3 |
- Access Control Lists (ACL): ACL by IP address, ACL by MAC
- Static MAC address
- Rate limits |
- Link Layer Discovery Protocol (LLDP): LLDP remote device
- interfaces: Web UI, Telnet, Command Line Interface (CLI)
- SNTP, DNS, DHCP client entry |
- Port mirroring
- Loop protection to avoid broadcast loops
- Wake-on-LAN |
Hardware Specification
QGD-1602-C3758-16G
| Management Type |
Web Managed |
| Number of Ports |
18 |
| 10GbE SFP+ |
2
10G/1G
|
| 2.5GbE (RJ45) |
8 |
| 1GbE (RJ45) |
8 |
| PCIe Slot |
Slot 1: PCIe Gen3 (x4 slot, x2 speed)
Slot 2: PCIe Gen3 (x4 slot, x2 speed) |
| USB 3.2 Gen 1 port |
2 |
| Management Port |
2 x 5GbE ; 2 x 1GbE |
| USB 3.2 Gen 2 (10Gbps) Port |
Optional via PCIe adapter |
| Power Supply Description |
Internal Power Supply Unit |
| Max. Power Consumption |
100W |
| Input Power Type |
AC |
| Input Voltage Range |
100-240VAC, 50/60 Hz |
| MAC Address Table |
32K |
| Total Non-Blocking Throughput |
48Gbps |
| Switching Capacity |
96Gbps |
| Management Interface |
Web |
| Fan |
System: 3 x 4 cm (12V DC) |
| Supported Standards |
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
IEEE 802.3an 10GBASE-T 10G Ethernet
IEEE 802.3ae 10GBASE-SR
IEEE 802.3ae 10GBASE-LR
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Form Factor |
Rackmount |
| LED Indicators |
Per Port: Link/Activity/Speed
Per System: Warning/Fan |
| LCD Management |
 |
| Buttons |
Device PSU power button
Host power button
Host reset button(load default)
Switch reset button |
| Dimensions (HxWxD) |
44.2 × 435.2 × 327.7 mm |
| Weight (Net) |
4.37 kg |
| Weight (Gross) |
5.52 kg |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Relative Humidity |
5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F) |
| Certifications |
CE, FCC, VCCI, BSMI RCM |
| Electromagnetic Compliance |
CLASS A, UL62368 |
| Jumbo Frames |
|
| QTS Built-in |
|
| CPU |
Intel® Atom® C3758 8-core 2.2 GHz processor |
| CPU Architecture |
64-bit x86 |
| Intel QAT Support |
|
| Internal Network Bandwidth |
2 x 10GbE |
| Floating Point Unit |
|
| Encryption Engine |
(AES-NI) |
| System Memory |
16 GB (1 x 16 GB) |
| Maximum Memory |
64 GB |
| Memory Slot |
2 x SODIMM DDR4 |
| Flash Memory |
4GB (Dual boot OS protection) |
| Drive Bays |
2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives |
| Hot-swappable |
|
| M.2 SSD Slots |
2 (NVMe, PCIe Gen3 x 1) |
| SSD Cache Acceleration Support |
|
| File System: Internal Hard Drive |
EXT4 |
| File System: External Hard Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty |
2 Years |
