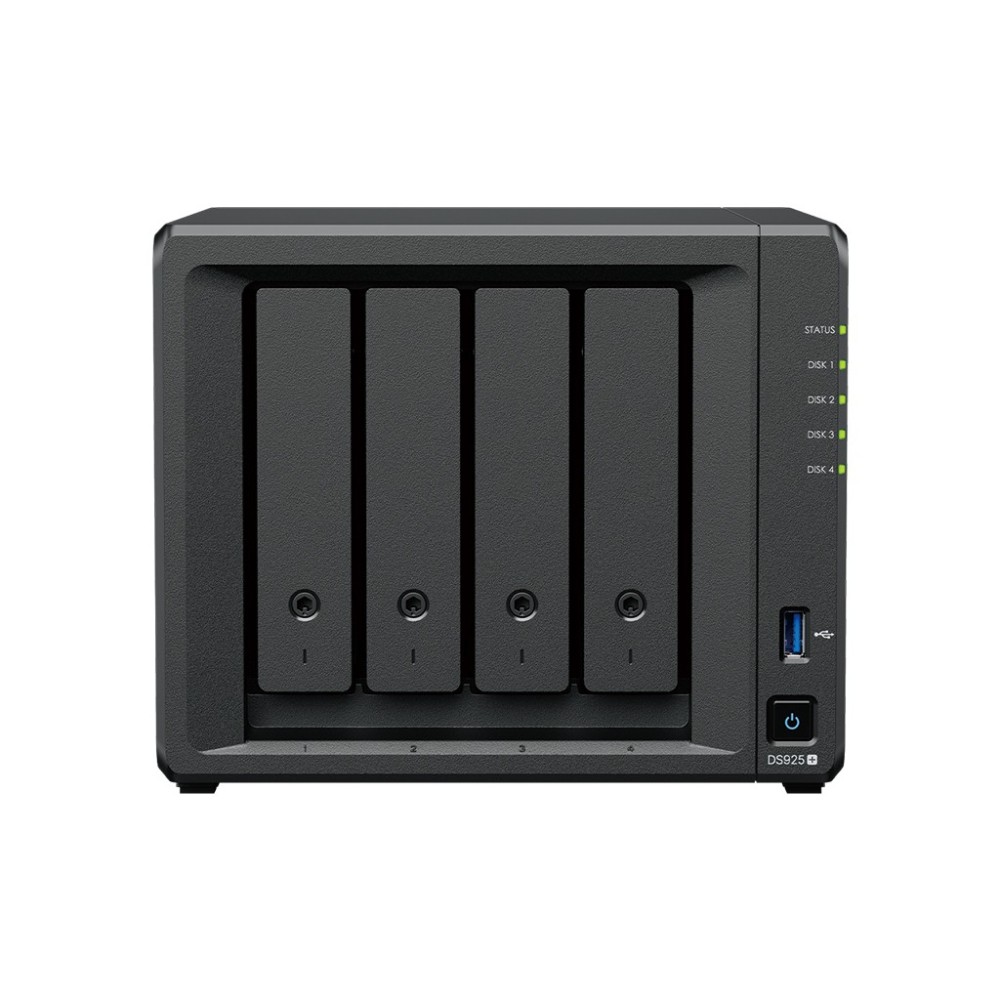

Synology DS925+

Synology
DS925+

Plus Series DiskStation DS925+

Flexible storage platform for small businesses and home offices

CPU: AMD Ryzen V1500B 4-core 2.2 GHz

RAM: 4 GB DDR4 ECC SODIMM (MAX 32GB)

M.2 NVMe Slots x2

2.5 GbE LAN Port x2

USB 3.2 Gen 1 Port x2

Expansion Port (USB TYPE-C) x1

3 Years Warranty

----- Reference -----

Synology DS925+, 4 Bays NAS, Flexible storage platform for small businesses and home offices, CPU: AMD Ryzen V1500B 4-core 2.2 GHz, RAM: 4 GB DDR4 ECC SODIMM (MAX 32GB), M.2 NVMe Slots x2, 2.5 GbE LAN Port x2, USB 3.2 Gen 1 Port x2, Expansion Port (USB TYPE-C) x1, 3 Years Warranty

Drive Bays : 4-Bays NAS
check In Stock
Hurry! only 10 items left in stock.
23,500.00 ฿
Tax included
Quantity

สอบถามรายละเอียดและข้อมูลเพิ่มเติม

DiskStation DS925+

Flexible storage for everything from home office to edge

Product Image DS925plus


Consolidate and store your growing digital data

Download Datasheet

4-bay with expansion

Up to 180 TB of raw storage with expansion unit1,2

High-speed storage

Two built-in 2.5GbE ports and over 522/565 MB/s sequential read/write3

Versatile applications

Back up multiple endpoints, manage 40 IP cameras4 , or safely sync and share files across sites


2.5GbE connectivity and diverse storage options

The DS925+ features built-in 2.5GbE networking and supports both SATA flash drives and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as either cache or storage pools.1,5

Up to

522/565 MB/s

read/write3

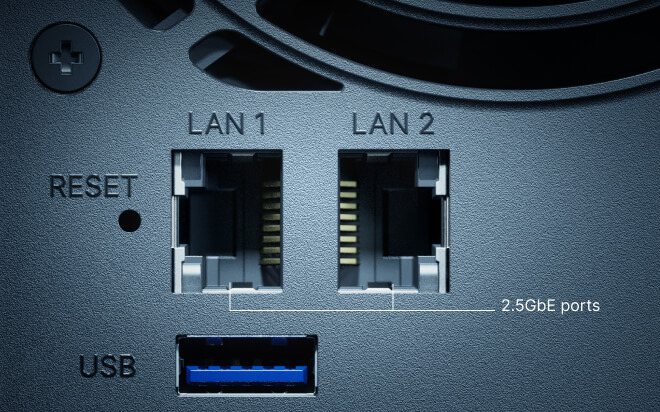

It features built in 2.5GbE networking

Built-in dual

2.5GbE

networking


And supports two M.2 NVMe slots for caching or storage pool creation

2 x M.2

NVMe

cache & storage pool5


Expand capacity for evolving needs

Consolidate your data with up to 80 TB of raw storage across 4 bays. Need more space? Add capacity with the DX525 for up to 180 TB of total raw storage.2

The DS925+ supports up to 180 TB of raw capacity after expansion when using 20 TB drives

4 bays

80 TB

9 bays

180 TB


Performance backed by Synology drives

Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.4

HDD

Enterprise Series 3.5" SATA

Plus Series 3.5" SATA

SSD

Enterprise Series 2.5" SATA

Enterprise Series M.2 NVMe


Extra protection with Extended Warranty Plus

Add an additional two years to your standard three-year limited hardware warranty10 and gain access to premium services that accelerate recovery in the event of a disaster.11


Hardware Overview

1 Status Indicator

2 Drive Status Indicators

3 Drive Tray Lock

4 USB 3.2 Gen 1 Port

5 Power Button and Indicator

6 Drive Trays

7 Fans

8 2.5GbE RJ-45 Ports

9 Reset Button

10 USB 3.2 Gen 1 Port

11 Power Port

12 Expansion Port

13 Kensington Security Slot

14 M.2 NVMe SSD Slots


Hardware Specifications

CPU CPU Model AMD Ryzen V1500B
CPU Quantity 1
 CPU Core  4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware Encryption Engine (AES-NI)
Memory System Memory 4 GB DDR4 ECC
Memory Module Pre-installed 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage Drive Bays 4
Maximum Drive Bays with Expansion Unit 9 (DX525 x 1)
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
Hot Swappable Drive*
Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
External Ports RJ-45 2.5GbE LAN Port 2
USB 3.2 Gen 1 Port 2
Expansion Port Type USB Type-C
Appearance Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
Weight 2.26 kg
Others System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 20. dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 100 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 37.91 W (Access)
12.33 W (HDD Hibernation)
British Thermal Unit 129.27 BTU/hr (Access)
42.05 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
Warranty 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
Optional Accessories

Notes:

  1. Notes: Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
