Synology DS1825+

Synology
DS1825+

Plus Series DiskStation DS1825+

High-capacity & versatile storage solution in a desktop form factor

CPU: AMD Ryzen V1500B 4-core 2.2 GHz

RAM: 8 GB DDR4 ECC SODIMM (MAX 32GB)

M.2 NEMe Slots x2

2.5GbE LAN Port x2

USB 3.2 Gen 1 Port x3

Expansion Port (USB Type C) x2

PCIe Gen3 x8 slot x1

3 Years Warranty

----- Reference -----

Synology DS1825+, 8 Bays NAS, High-capacity & versatile storage solution in a desktop form factor, CPU: AMD Ryzen V1500B 4-core 2.2 GHz, RAM: 8 GB DDR4 ECC SODIMM (MAX 32GB), M.2 NEMe Slots x2, 2.5GbE LAN Port x4, USB 3.2 Gen 1 Port x3, Expansion Port (USB Type C) x2, PCIe Gen3 x8 slot x1, 3 Years Warranty

Drive Bays : 8-Bays NAS
check In Stock
Hurry! only 10 items left in stock.
42,500.00 ฿
Tax included
Quantity

สอบถามรายละเอียดและข้อมูลเพิ่มเติม

DiskStation DS1825+

High-capacity & versatile storage solution in a desktop form factor

Designed for scalability and performance

Download Datasheet


8-bay with expansion

Up to 360 TB of raw storage with expansion unit1,2

High-speed storage

Two built-in 2.5GbE ports,over 2,239/1,573 MB/s sequential read/write3, and 10/25 GbE option4

Versatile applications

Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sites


Fast, out-of-the-box performance with 25GbE support

The DS1825+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.1,6 Its support for expansion cards allows configuration flexibility, supporting faster networking of up to 25GbE.4

It features two built-in 2.5GbE ports

Built-in dual

2.5GbE

networking

The DS1825+ achieves up to 2,239 MB/s read and 1,573 MB/s write speeds

Up to

2,239/1,573 MB/s

read/write3

And supports two M.2 NVMe slots for caching

2 x M.2

NVMe

cache6

It supports up to 25GbE networking

Up to

25GbE

networking with add-in card4

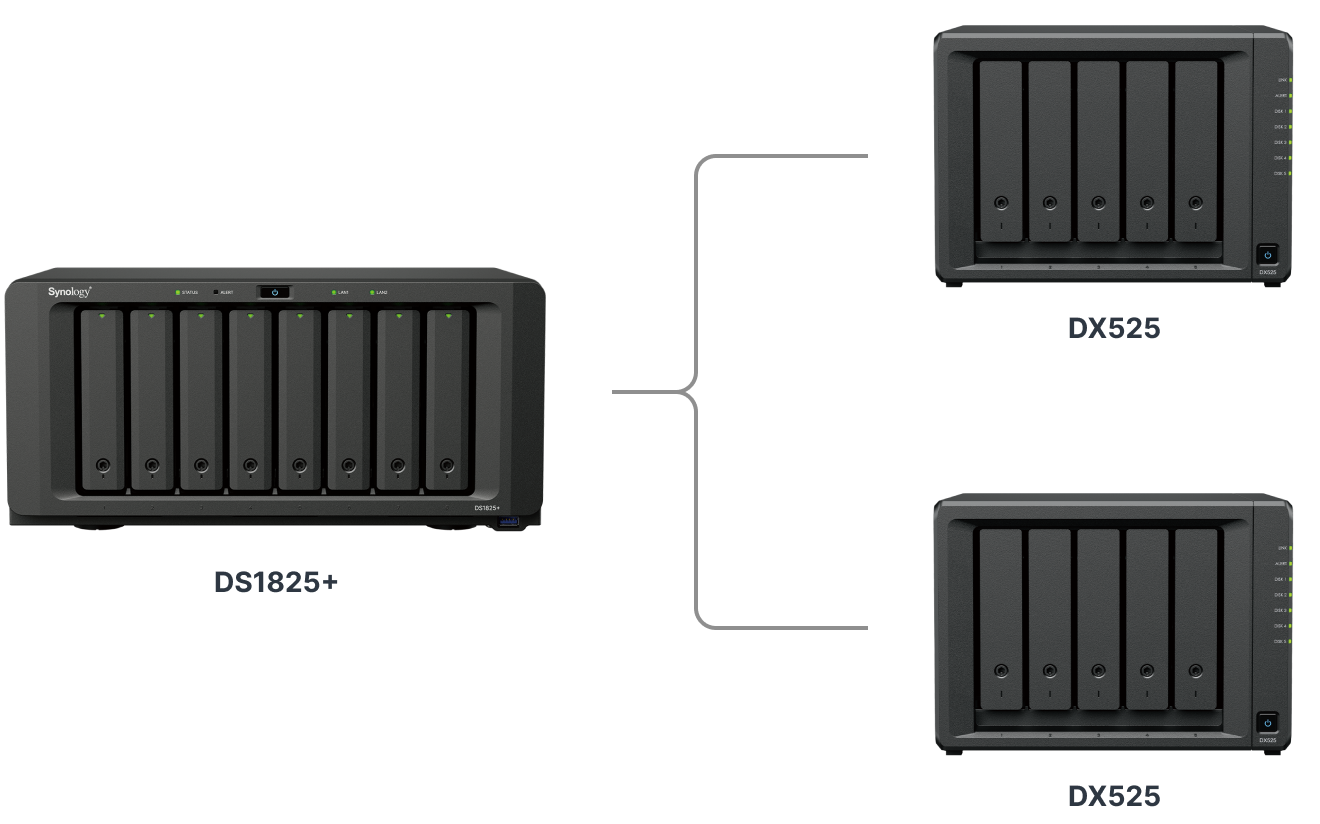

Expand capacity for evolving needs

Consolidate your data with up to 160 TB of raw storage across 8 bays. Need more space? Add capacity with two DX525 for up to 360 TB of total raw storage.2

The DS1825+ supports up to 360 TB of raw capacity after expansion when using 20 TB drives

8 bays

160 TB

18 bays

360 TB


Performance backed by Synology drives

Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.4

HDD

Enterprise Series 3.5" SATA

Plus Series 3.5" SATA

SSD

Enterprise Series 2.5" SATA

Enterprise Series M.2 NVMe


Extended protection with Extended Warranty

The DS1825+ is backed by Synology’s 3-year hardware warranty.12 An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.


Hardware Overview

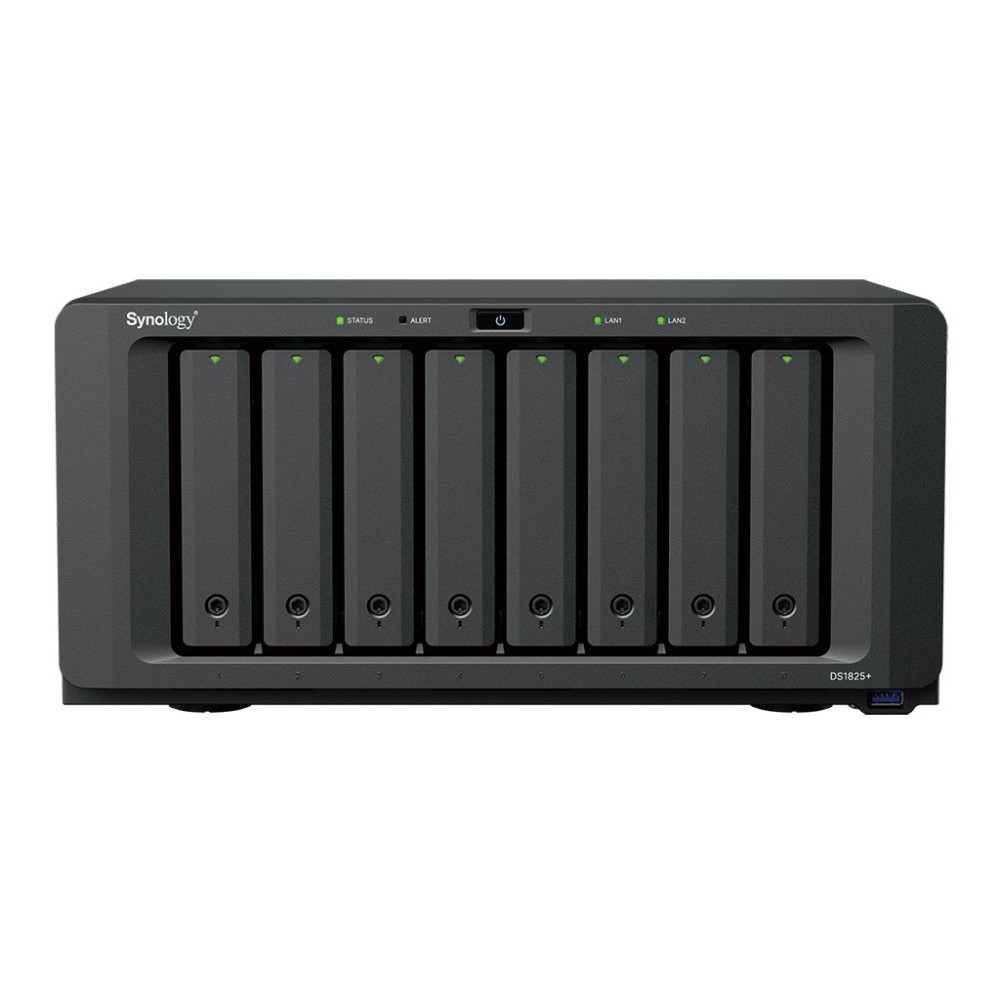

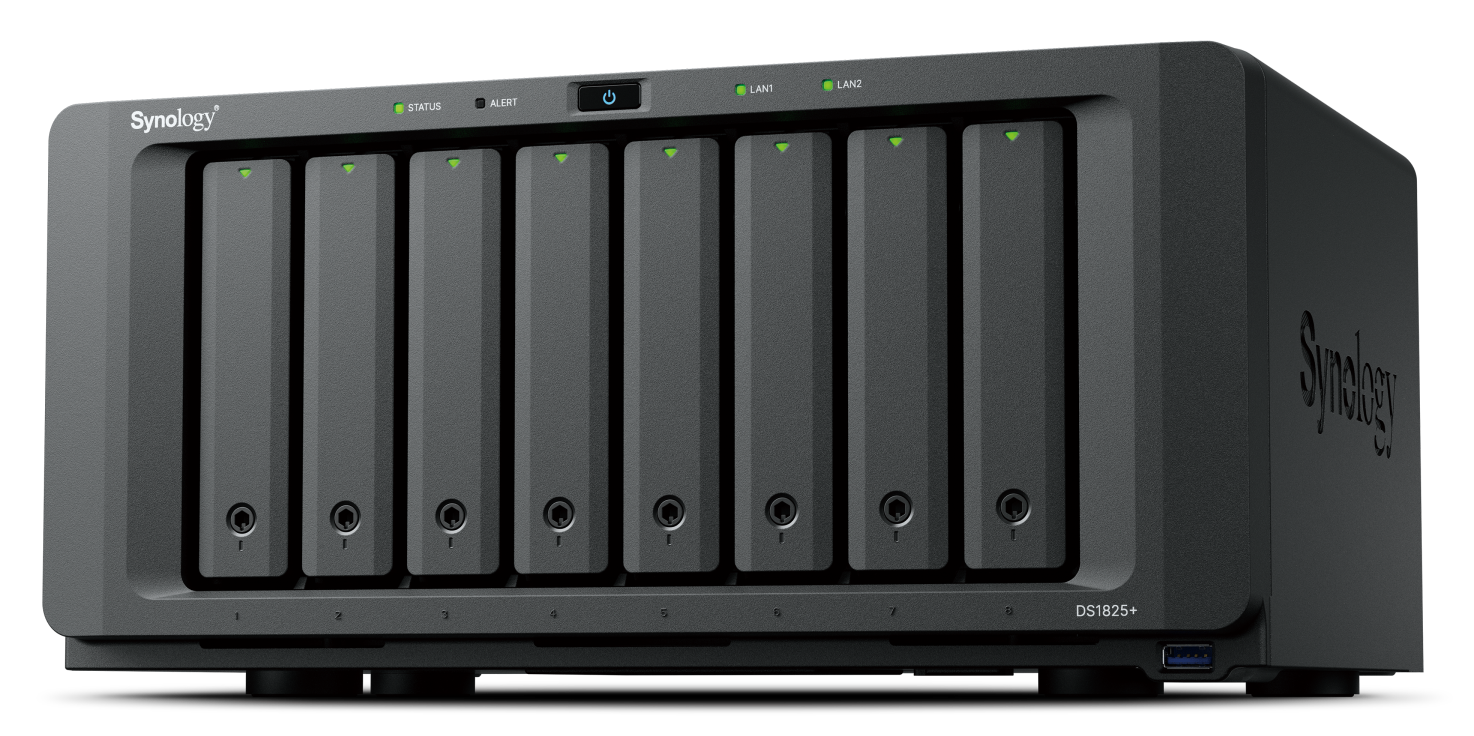

productDS1825plusfront view photo

productDS1825plusback view photo

1 Status indicator

2 Alert indicator

3 Power button and indicator

4 LAN indicators

5 Drive status indicators

6 Drive trays

7 Drive tray lock

8 USB 3.2 Gen 1 port

9 Power port

10 Fans

11 PCI Express expansion slot

12 Kensington security slot

13 Expansion ports

14 2.5GbE RJ-45 ports

15 Reset button

16 USB 3.2 Gen 1 ports


Hardware Specifications

CPU

CPU Model AMD Ryzen V1500B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware Encryption Engine (AES-NI)

Memory

System Memory 8 GB DDR4 ECC SODIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)

Storage

Drive Bays 8
Maximum Drive Bays with Expansion Unit 18 (DX522 x 2)
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type* (See all supported drives)

  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Storage Pool and volume creation require all drives to be listed as compatible on the device model's compatibility list.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 2.5GbE LAN Port 2
USB 3.2 Gen 1 Port 3
Expansion Port 2
Expansion Port Type USB Type-C

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x4 link)

Appearance

Size (Height x Width x Depth) 166 mm x 343 mm x 243 mm
Weight 6 kg

Others

System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 23.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 250 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 60.1 W (Access)
18.34 W (HDD Hibernation)
British Thermal Unit 204.94 BTU/hr (Access)
62.54 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Certification

  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS

Warranty

3-year hardware warranty, extendable to 5-year coverage - EW201
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2

Optional Accessories

  • DR4 ECC SODIMM: D4ES03-8G/D4ES03-16G
  • Expansion Units: DX525
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Plus Series 3.5" SATA HDD: HAT3300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • Enterprise Series M.2 2280 NVMe SSD: SNV3400 Series
  • 25GbE Network Interface Card: E25G30-F2
  • 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
